A..15211 ..1

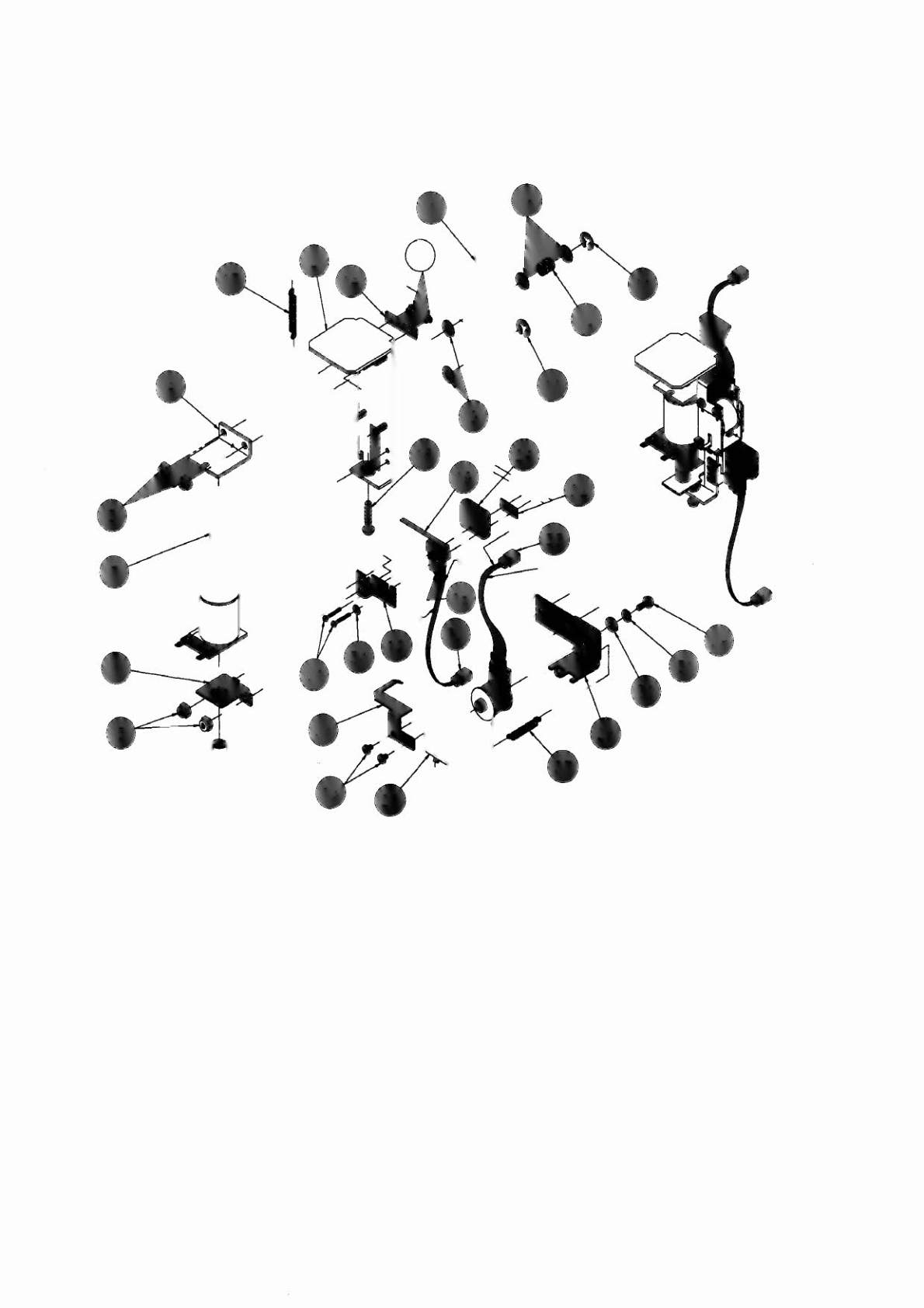

1 Bank Drop Target Assembly
Item PartNumber Description
1 03-8750
Flush Target
2 A-14617
Bracket & Post Assembly
3 4408-01119-01 Nut 8-32 ESNA-NTM
4 A-11397
Drop Target Stop Bracket
5 AE1-26-1200 Coil Assembly
6 01-8413
Coil Mounting Bracket
7 03-7066-4 Coil Tubing
8 A-11388-2 Plunger & Reset Plate
Assembly
9 4700-00072-00 FW .256x .500 x .032
10 10-392
Compression Spring
11 20-8712-25 E Ring - W' Shaft
12 01-10183
Switch Bracket
13 4006-01003-03 MS 6-32 x
3/16"
P-PH-S
14 03-8034
Single Target Stop
15 4010-01025-14 MS 10-32x
7/8"
P-RH
16 07-6688-17N Rivet
5/32"
x
1/8"
Nickel
17 10-433
ExtensionSpring
Item PartNumber Description
18 5070-09054-00 Diode 1N40041.0A
19 5647-12693-31 Sub Mini Micro Switch
20 01-8600
Insulator
21 4002-01105-10 MS 2-56 x 5/8" P-PH-S
22 01-8240
Plate Nut 2-56
23 01-8647-R Actuator
24 03-8630
Actuator Guide
25 A-15821
Armature Assembly
26 A-15209
Frame & Eyelet Assembly
27 10-363
ExtensionSpring
28 SM1-26-600 Coil Assembly
29 4008-01021-06 MS 8-32 x 3/8" P-RH Brass
30 4700-00089-00 FW .172 x .437 x .062
Brass
31 4701-00003-00 LW #8 Split
32 H-23019-2 Switch 2 Pin Cable
33 H-19523
Solenoid 2 Pin Cable
34 4700-00003-00 FW .125 x .281 x .032
2-19
