14
PART NUMBER
I. 20-4004
2. A-8096-L
3. A-8096-R
4. B-8055
5. B-7060
6. 23A-6519
7. B-7894
8. A-8046
9. A-8100
10. B-7875
II. D-7931-IS
12. D-7931-4S
13. 0-7473
14. 30B-7573
PHOENIX PARTS
DESCRIPTION
TOP ARCH ROD
LEFT BALL GATE
RIGHT BALL GATE
BALL KICKER ASSY.
FLIPPER ASSY.
FLIPPER RUBBER
JET BUMPER ASSY.
STATIONARY TARGET ASSY.
STATIONARY TARGET ASSY.
SPINNING TARGET ASSY.
DROP TARGET ASSY.
DROP TARGETS ASSY.
BOTTOM ARCH ASSY.
BALL SHOOTER GAUGE
PLATE
RUBBER RING I" J.D.
RUBBER RING 1-1/4" J.D.
RUBBER RING 1-1/2" J.D.
RUBBER RING 2" J.D.
RUBBER RING 2-3/8" J.D.
RUBBER RING 2-7/8" J.D.
ROLLOVER WIRE ASSY.
ROLLOVER WIRE ASSY.
PLAYFIELD PLASTICS-
SET OF 8
GATE MOUNTING BRACKET
ANTI-RETURN BALL GATJ~
BALL GUIDE ASSY.-LEFT...,r
BALL GUIDE ASSY.-RIGHT
POST ADJUSTMENTS
To make game more conservative or liberal, move post
3/16" as shown in sketch. Spotting holes are provided and
can be seen upon removal of posts.
SUGGESTED SCORE CARDS

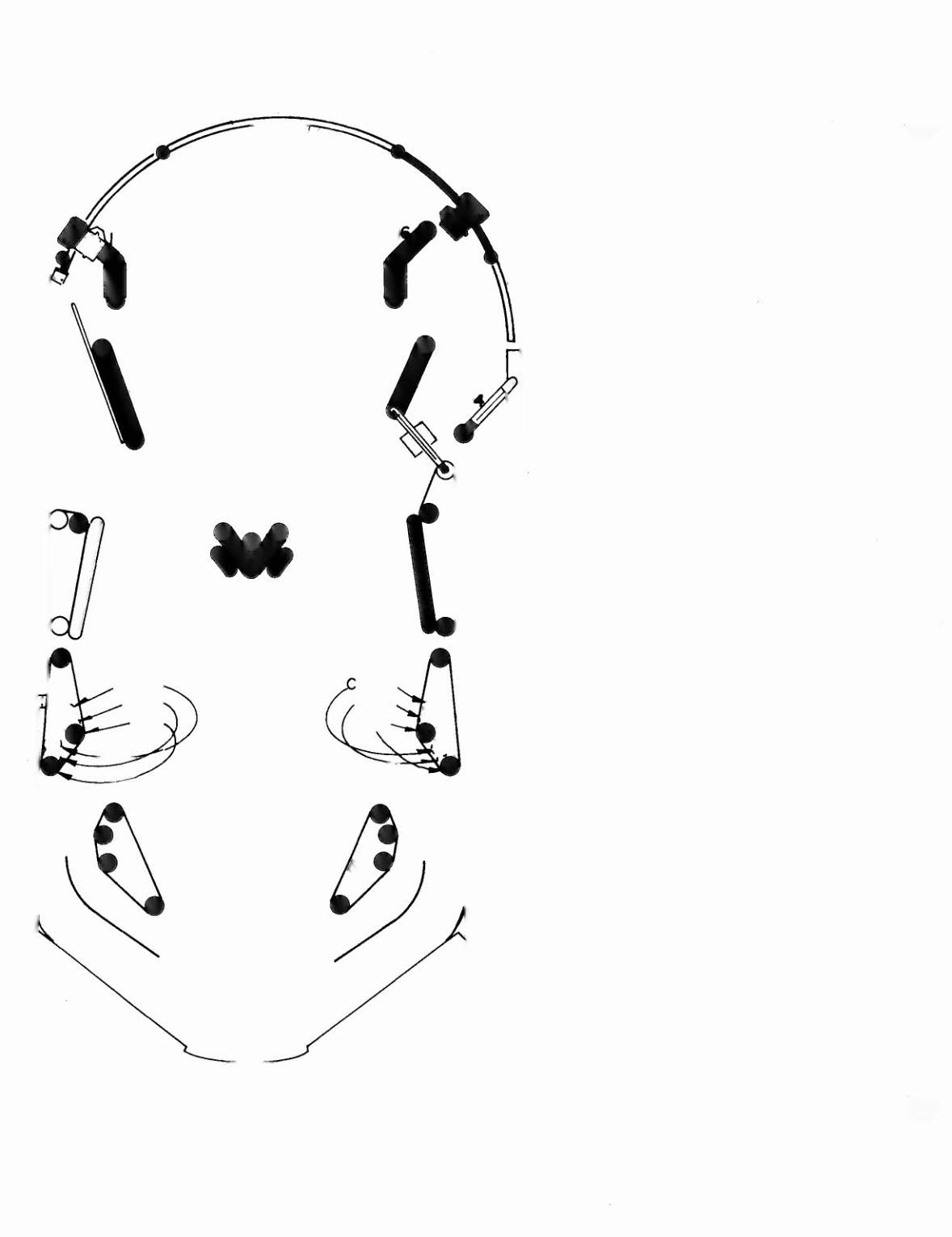

Figure
12.
PHOENIX Spare Parts Identification and Post Adjustment
Details
15. 23A-6302
16. 23A-6303
17. 23A-6304
18. 23A-6305
19. 23A-6306
20. 23A-6307
2I. A-5844-8
22. A-5844-9
23. 30C-485
36
24. lA-3206
25. 12A-6460
26. B-7537-L
27. B-7537-R
CREDIT GAMES
3 Ball 16C-485-12-SS
or 16C-485-25-SS
5 Ball 16C-485-48-SS
EXTRA BALLS
3 Ball 16C-485-58-SS
5 Ball 16C-485-63-SS
