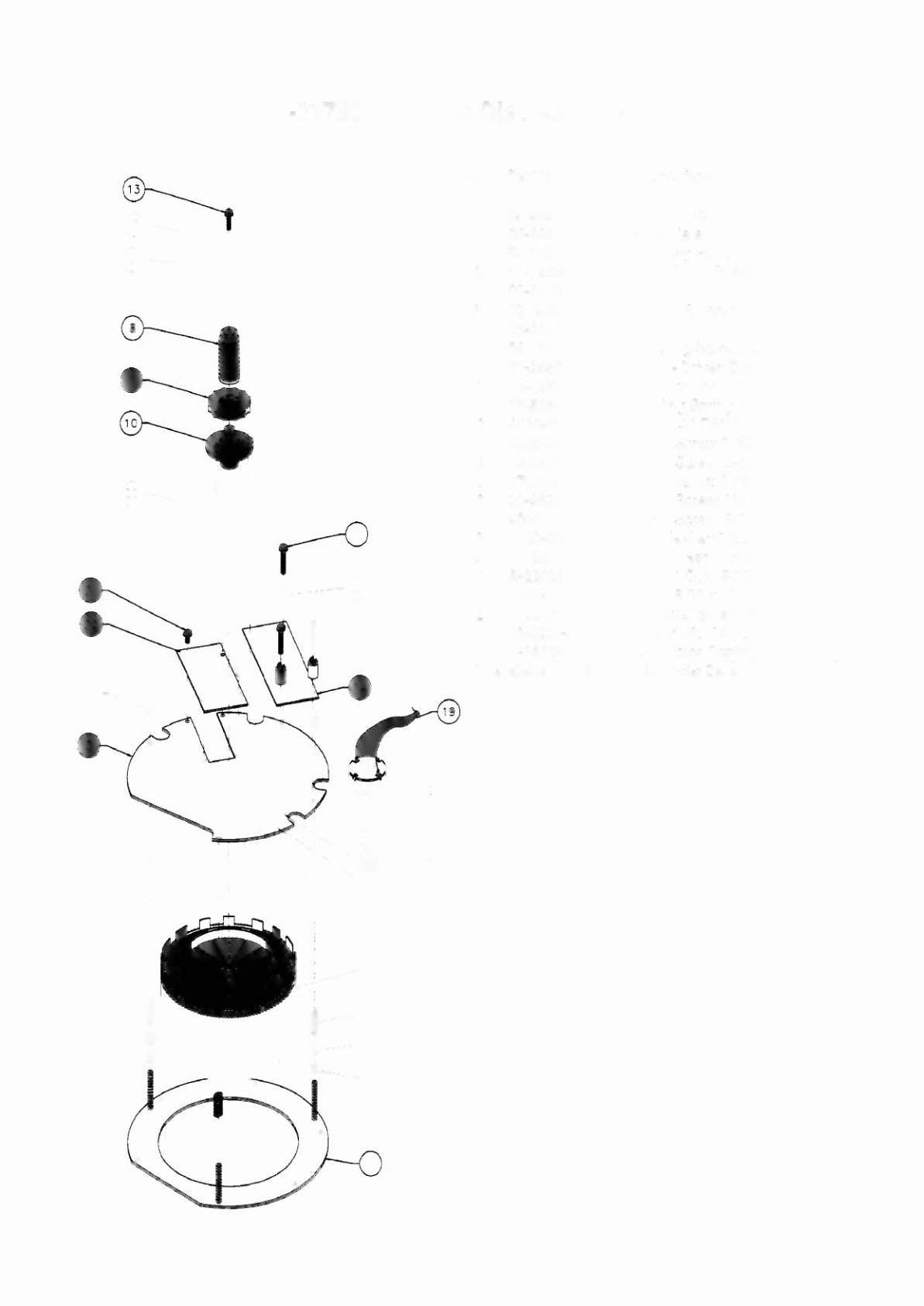

A-21786 Driven Disc Assembly
Item PartNumber
Description
1 03-9691
Driven Disc
2 04-10912
Base Plate
3 04-10913.2
Mounting Plate
4 14-7955-1
Motor ( Low Speed)
5 02-4418-1
Shaft
6 03-8343
Pinion-18Tooth
7 03-8347
Gland
8 04-10412
Adjusting Screw Assembly
*
9 31-2957
Decal- Driven Disc
10 03-8363-1
Nut - Locking
11 10-526
Leveling Spring
12 4410-01132-01 Nut 10-32 ESNA
13 4008-01168-08 Mach. Screw 8-32 x
W
14 4008-01041-10 Mach. Screw: 8-32 x 5/8"
15 4700-00016-00 Flat Washer: 3/16 x 7/16 x 17ga.
16 20-9639
Mach. Screw: M3 x .5 x 6mm
17 4008-01168-16 Mach. Screw: 8-32 x 1"
18 4700-00060-00 Flat Washer: 7/32 x
Y2
x 16ga.
19 H·18601-1
Oabla- Gen. Motor 4-Pin 8"
20 A·22026
Motor 2 Opto PCB Assembly
21 4008-01168-05 Mach. B-32x 5/16"
22 4108-01013-08 Sh. Metal Screw: #8 x 3/B"
23 03-9255-3
Spacer #B, .541 Long
24 A-16120
D.C. Motor Control Assembly
*
Not available for individual sale. Order Decal Set 31-2957.
