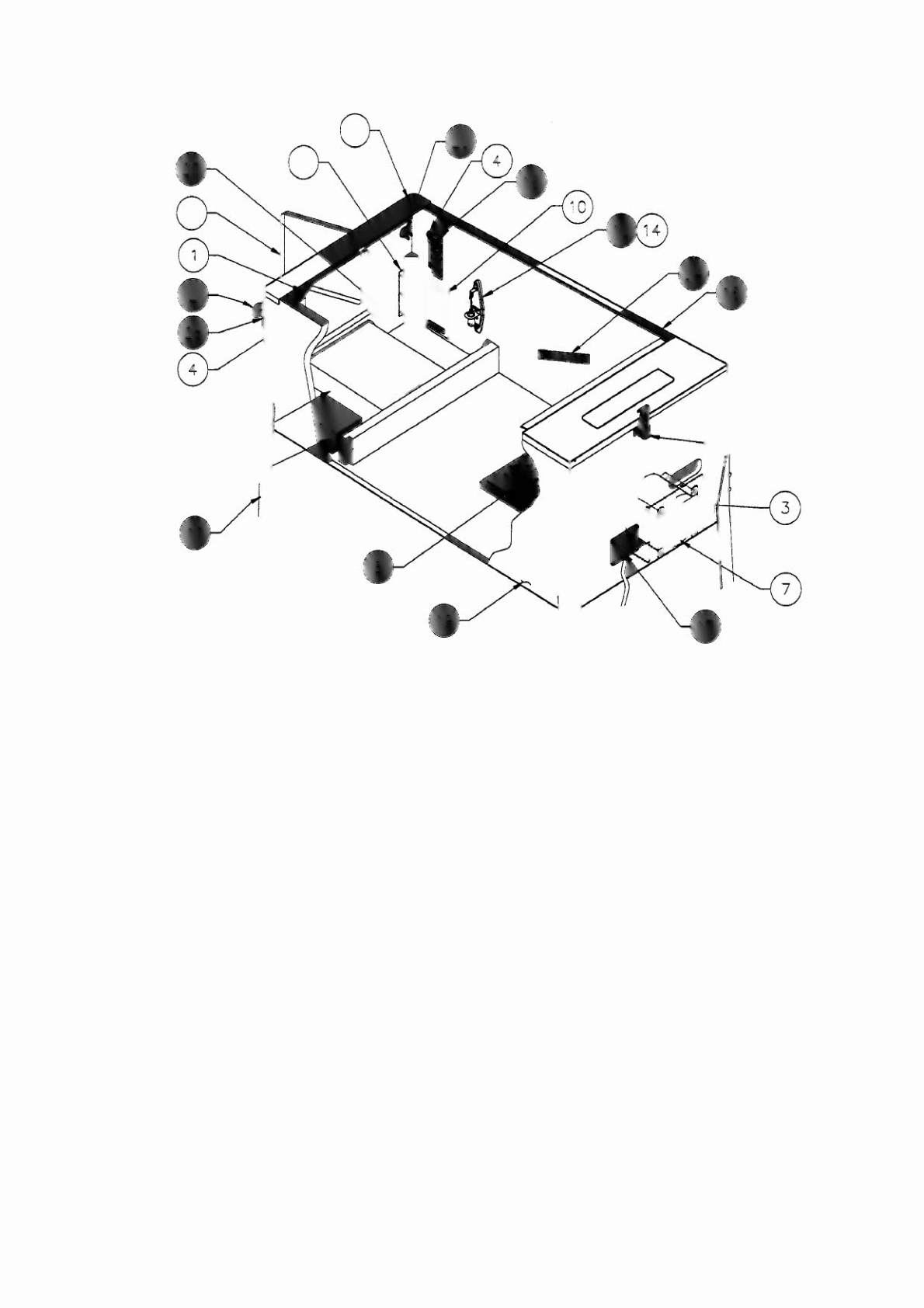

50061-CAB Cabinet Assembly
Item Part Number
Description
1 A-16773-1
Lever Guide Assembly
2
8-12445-1
Ball Shooter Assy.
3 01-13936
Drip Plate - Narrow
4
A-16883-6
Flipper Button w/Spring (2)
5
A-22023-5
6-Ball Cashbox Assembly
6
A-20871
Power Interface Assy.
7 5610-14515-00
WPC Transformer
8
5555-12929-00
Speaker,
4Q,
6", 25w
9 20-9347
Toggle Latch
10 A-20580
Coin Door Interface Board
11 A-19514
Leg Assembly, Chrome
(4)
12 0-12615
Front Molding Assembly
13 20-6502-A
Plumb Bob
14 04-10346
Tilt Mechanism Assembly
15
*
Cordset
16 A-17316
Opto Flipper Assembly
(2)
17 01-10714
Line Cord Cover
18 A-12359-3
Side Molding Assembly
(2)
19 11-1353
Wood Cabinet
20 20-9663-16
Push Button w/Sw.,
Start
(Yellow)
21 01-11400
Leg Plate
(4)
22 A-18249-3
Cable & Interlock Switch Assy.
23 09-61000-1
Coin Door-U.S.A.
24 01-11408
Plate Spacer (2)
• See Power Interface/Cordset Application Chart on page
2-54.
2-3
Item Part Number
Description
25 01-3535
Rod Mounting Plate
Miscellaneous Parts: (Not Shown)
A-17195
Tilt Switch Assy. w/Cable
A-19562.1
Stay Arm Assembly
01-12352
Clip Bracket
01-9011.1-L
Backbox Mtg. Bracket, Left
01-9011.1-R
Backbox Mtg. Bracket, Right
01-6389-1
Cashbox Lock Bracket
08-7028-
T
Playfield Glass
08-73n
Leg Leveler Adjuster, 3"
20-6500
Steel Ball,
1-1/16"
(6)
Cabinet Cables:
A-20201
H-17217.1
H-17837-2
H-20599-1.1
H-19601-1
H-20856
Cable & Jumper Assy., Coin Door
Plumb/Bob Mech. Protect Cable
Voltage Program Jumper Cable
WPC
'95
Cabinet Cable
Power Extension Cable
Cabinet Switch/Lamp Cable
