4.
Reach into the cabinet and backbox and ensure that the interconnecting cables are not kinked or
pinched. Be careful to avoid damaging wires at any stage of the assembly process.
5.
Raise the hinged backbox upright and latch it into position.
Unlock the backbox. Carefully, lift the backglasslinsert panel from the bottom. Slide it down and
out of the backbox grooves. Rotate it forwards from the top, and lay it facedown on the playfield
glass. Unplug the cables extending from the backbox to the backglass/insert panel. Carefully, set
the backglass/insert panel aside.

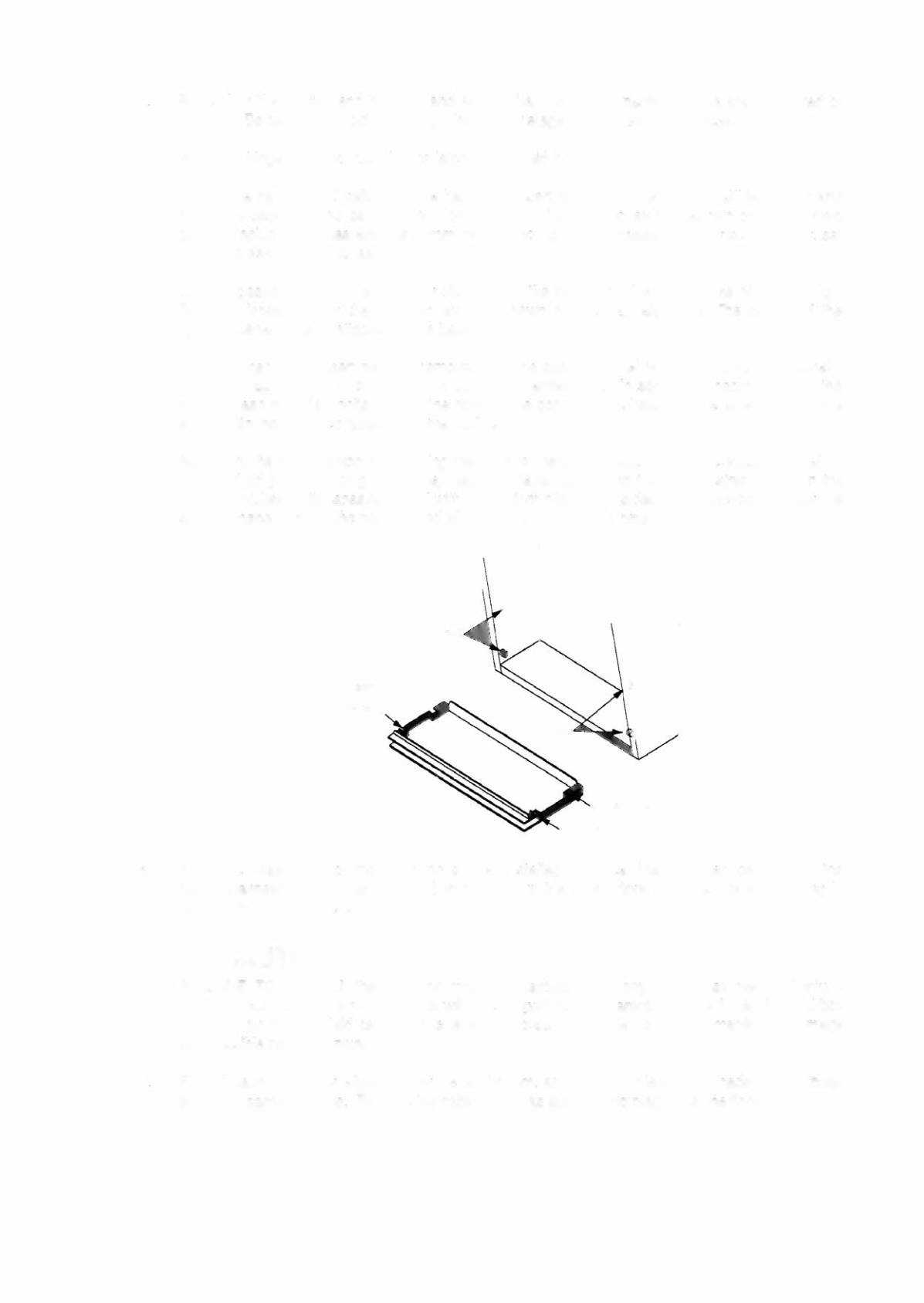

Lift the speaker panel so that the top notches clear the top set of pins in the sides of the backbox.
Rotate it forwards from the top, and lay it facedown on the playfield glass. The bottom of the
speaker panel remains attached to the backbox.
Once the backglass/insert panel is removed and the speaker panel is lowered onto the playfield,
the holes needed to secure the backbox upright are accessible. To secure the backbox, install the
washer-head mounting bolts through the holes in the bottom of the backbox. Be sure that the bolts
extend into the threaded fasteners in the cabinet.
Note:
You have the option of removing the speaker panel completely. Lay the speaker panel on
the playfield glass. Unplug the display cable, speaker cable, and the ground strap. Line up the
bottom notches in the speaker panel with the bottom pins in the sides of the backbox. Lower the
speaker panel through the notches and slide
it
under the backbox pins.
6.
After the washer-head mounting bolts are installed, replace the speaker panel and the
backglass/insert panel. Take care when plugging in the connectors. Connectors should plug in
easily. Do not force the connectors.
&
CAUTION
FAILURE
TO
INSTALL
the backbox mounting hardware properly can cause personal injury.
NEVER TRANSPORT
a pinball game with the hinged backbox erect. Always lower the backbox
forward onto the playfield cabinet on a layer of protective material to prevent marring or damage
and possible personal injury.
7.
Extend each leg leveler
slightly
below the leg bottom, so that all four leg leveler pads are extended
about the same distance. Remove the cabinet from its support and place it on the floor.
1-3
