A-22603 ..R

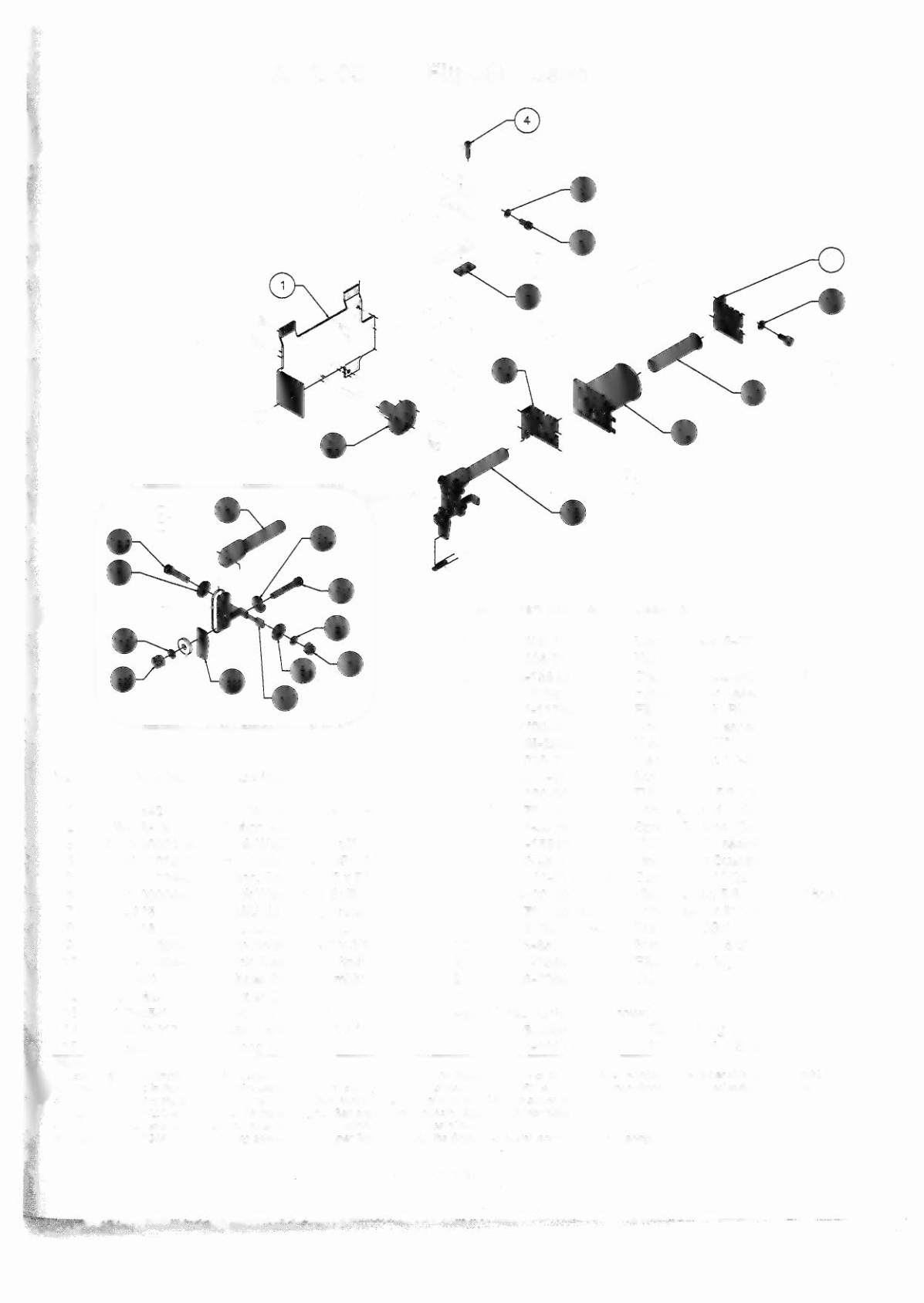

Flipper Assembly
Item Part Number
Description
16
4006-01005-06
Mach. Screw, 6-32 x 3/8"
17
4406-01117-00
Nut 6-32 Hex.
18
A-15848-R
Crank Link Assembly, Right
a)
A-17050-R
Flipper Crank Assembly, Right
1.
01-11764-R
Flipper Crank, Right
2.
4700-00107-01
Mod-Crank Washer
3.
RM-23-06
H.S. Tubing 14"
4.
401 0-01 066-20 Mach. Screw, 10-32 x 1-1/4"
Item Part Number
Description
5.
4410-01127-00
Nut, 10-32 Hex.
6.
4700-00107-00
FW: 13/64 x 5/8 x 12ga.
1 04-12342
Flipper Base Assembly-Mod., R.
7.
4701-00004-00
Lockwasher #10 Split
2 SW-1A-194
Switch Assembly
8.
01-9376
Spring Retainer Bracket
3 4701-00002-00
Lock Washer #6 Split
b)
A-15847
Flipper Link Assembly
4 4105-01019-10
Sh. Metal Screw, #5 x 5/8"
c)
02-4676
Link Spacer Bushing
5 4008-01 079-05 Mach. Screw, 8-32 x 5/16"
d)
401 0-01 086-14 Cap Screw, 10-32 x 7/8"
6 4701-00003-00
Lock Washer #8 Split
e)
4700-00023-00
Flat Washer, 5/8 x 13/64 x 16ga.
7 01-9375
Switch Mounting Bracket
f)
4701-00004-00
Lock Washer #10 Split
8 20-6516
Speednut, Tinnerman
g)
4410-01132-00
Nut 10-32 ESN
9 4010-01066-06
Cap Screw, 10-32 x 3/8"
19
23-6577
Bumper Plug, 5/8"
10 4701-00004-00
Lock Washer #10 Split
20
03-7568
Flipper Bushing
11 A-12390
Flipper Stop Assembly
21
03-7066-5
Coil Tubing
12 FL-11629
Flipper Coil
13 01-7695-1
Solenoid Bracket
Associated Parts: (Not Shown)
14 4006-01017-04
Mach. Screw, 6-32 x 1/4"
23-6695
Flipper Ring
15
10-364
20-10110-5
Bat w/Shaft
Flipper
1. Each Ripper Assembly is mounted beneath the playfield, in conjunction with the Plastic Flipper
&
Shaft, and Flipper Rubber on the upper side of the playfield.
With the flipper, in the non-activated position, the E.O.S. Switch contacts must have
a
gap of
.062 (:t.015)
inch. When flipper is activated switch must close.
Any adjustment of the E.O.S. switch must be made at
a
minimum distance of
0.25
inch from the switch body.
Longer blade of E.O.S. switch must be made straight. Gap adjustment is done by adjusting shorter blade.
All moving elements of the assembly must operate freely without any evidence of binding.
Apply Loctite™
245
when reattaching screws
to
the Ripper Stop Assembly, the SolenoidBracket,
and the Ripper Bushing.
2-17
