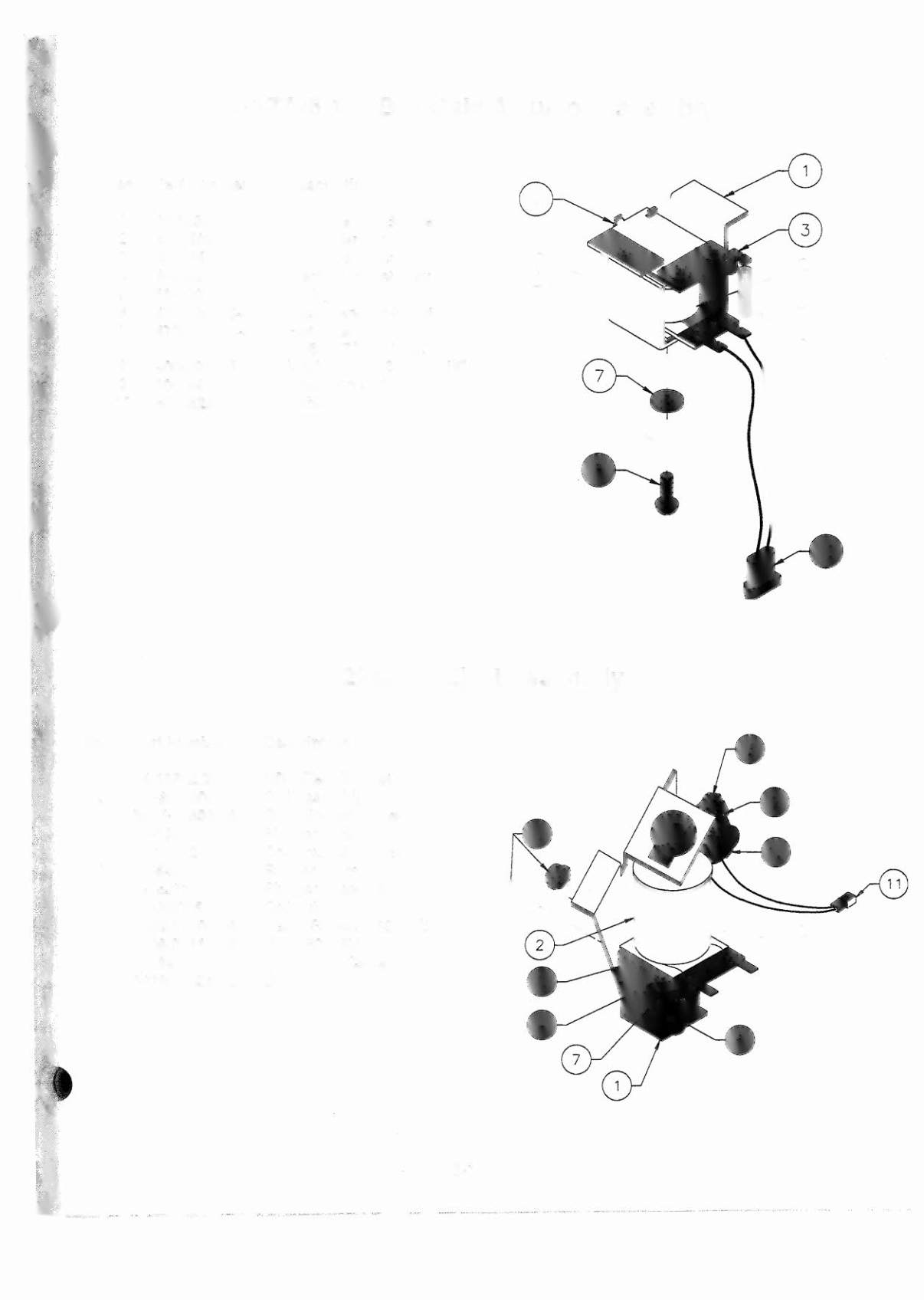

A-17796-1 Ball Gate Actuator Assembly
Item Part Number
1 01-12348
2 A-14406
3 A-11146
4
A-6892
5 10-120
6 4701-00003-00
7
4700-00089-00
8 4008-01021-07
9 10-194
10 H-19523-1
Description
Ball Gate Coil Bracket
Coil Assembly
Armature Assembly
Frame & Eyelet Assy.
Spring
Lockwasher #18 Split
Flat Washer: .
11/64
x
7/16
x
16ga.
Mach. Screw, 8-32 x 7/16"
Extension Spring
Cable
A-22449 Eject Assembly
Item Part Number
Description
1 04-10702.2-1
NBA Eject Bracket
2 AE-30-2000
Coil Assembly
3 5647-12693-66 Sub-Mini Micro Switch
~
4
10-135
Plunger Spring
5 04-10322-2
Coil Bracket 8-32 Stud
6
23-6420
Rubber Grommet
7
A-15371
Plunger Assembly
@~~,,<
8 03-7067-5
Coil Tubing
9 4002-01105-06 Mach. Screw, 2-56 x 3/8"
,
<,
,
10 4408-01119-00 Nut 8-32 ESNA
11 H-16437
Mini Switch Cable
12 5070-09054-00 Diode
