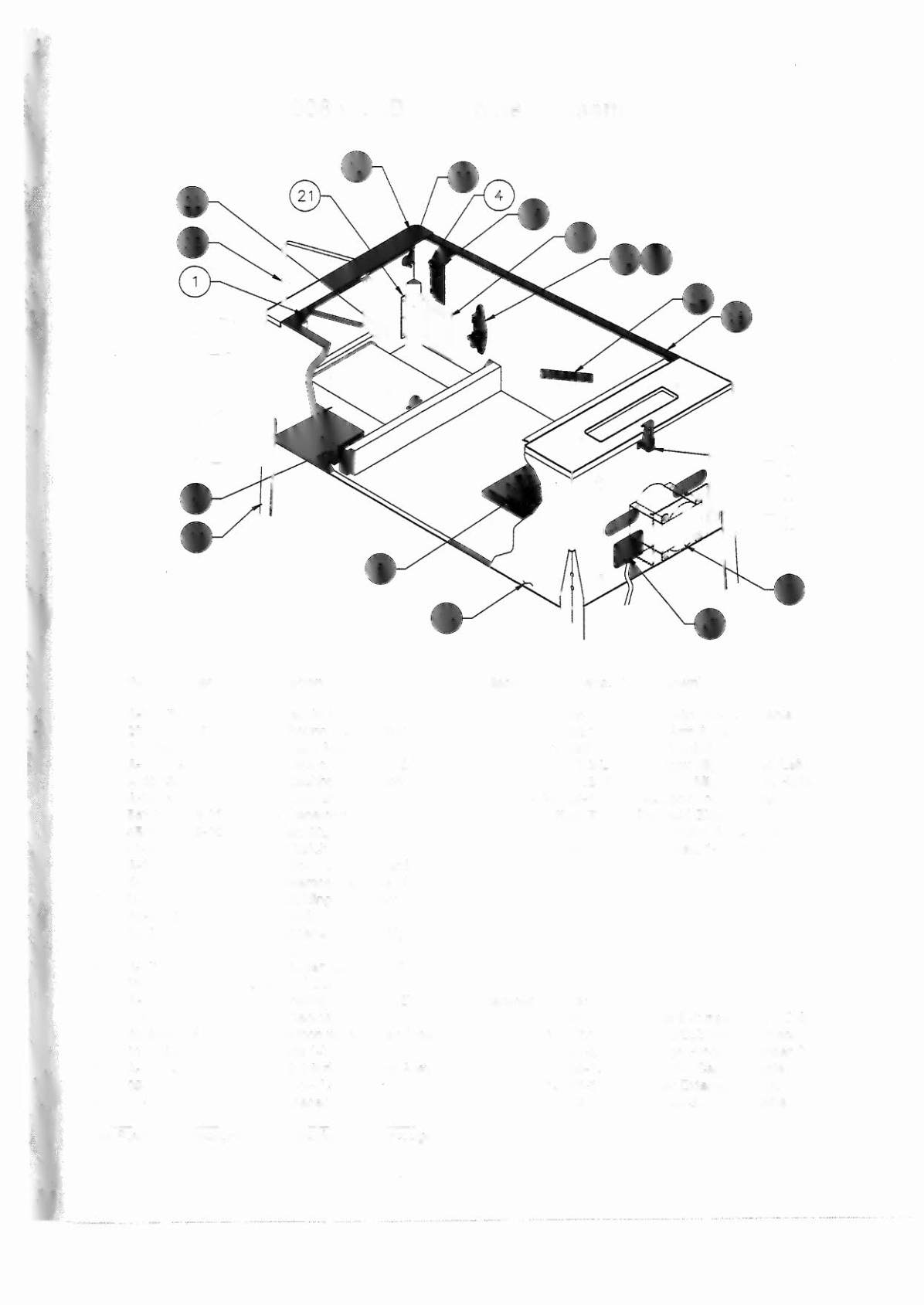

50065..CAB Cabinet Assembly
Item Part Number
Description
Miscellaneous Parts: (Not Shown)
1
A-16n3-1
Lever Guide Assembly
A-17195
Tilt Switch Assy. w/Cable
2 20-9663-B-4
Large Round Push Button
A-19562.1
Stay Arm Assembly
3 01-13936
Drip Plate - Narrow
01-12352
Clip Bracket
4 A-16883-6
Flipper Button w/Spring (2)
01-9011.2-L
Backbox Mtg. Bracket, Left
5
A-20729-5
4-Ball Cashbox Assembly
01-9011.2-R Backbox Mtg. Bracket, Right
6 A-20731
Power Interface Assy.
01-6389-1
Cashbox Lock Bracket
7
5610-14515-01
WPC Transformer
08-7028-T
Playtield Glass
8 5555-12929-00
Speaker, 4Q, 6", 25w
08-73n
Leg Leveler Adjuster, 3"
9 20-9347
Toggle Latch
20-6500
Steel Ball, 1-1/16" (4)
10 A-20580
Coin Door Interface Board
11 A-19514
Leg Assembly, Chrome (4)
12 0-12615
Front Molding Assembly
13 20-6502-A
Plumb Bob
14 04-10346
Tilt Mechanism Assembly
15
*
Cordset
16
A-17316
Opto Flipper Assembly (2)
17
01-10714
Line Cord Cover
18 A-12359-3
Side Molding Assembly (2)
Cabinet Cables:
19 11-1458
Wood Cabinet
A-20201
Cable
&
Jumper Assy., Coin Door
20 20-9663-16
Push Button w/Sw.,
Start
(Yellow)
H-17217.1
Plumb/Bob Mech. Protect Cable
21 01-11400
Leg Plate (4)
H-17837-2
Voltage Program Jumper Cable
22 A-18249-3
Cable
&
Interlock Switch Assy.
H-20599-1.1
WPC '95 Cabinet Cable
23 09-61000-1
Coin Door-U.S.A.
H-19601-1
Power Extension Cable
24 01-11408
Plate Spacer (2)
H-21838
Cabinet Sw/Lamp Cable
* See Power Interface/Cordset Application Chart on page 2-37.
