IMPORTANT N TICE
PLEASE READ
This pinball game is equipped with a SAFETY FEATURE to prevent shocks from
the solenoid circuit when the coin door is opened. An interlock switch assembly
(part no. A-18249-3), located at the left of the coin door opening, has been
added to the game. This assembly consists of a bracket containing the existing
memory protect switch on the bottom and a new interlock switch on the top.
When the coin door is opened, this new interlock switch opens, breaking the
connection to the +50V and +20V winding of the transformer secondary.
8LK-YEL (04C)
WHT-RED (928)
WHT-RED (92C)
8LK-YEL
(048)

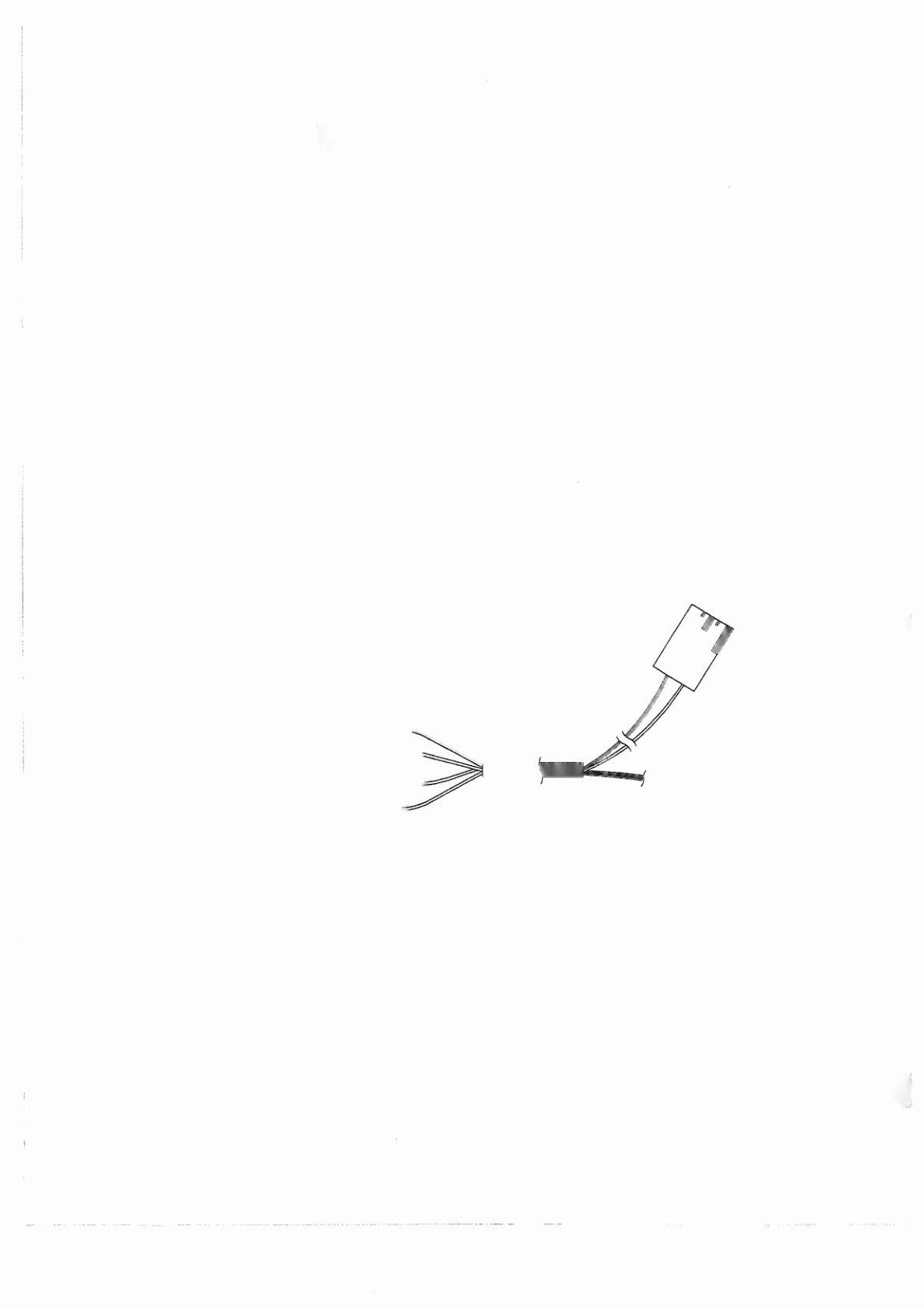

......._____ INTERLOCK SWITCH ASSEMBLY
(A-18249-3)
(A-18249-2.
JAPAN ONLY)
