AS-2518-18
RECTIFIER BbARD
ASSEMBLY
IZ
I
o
o

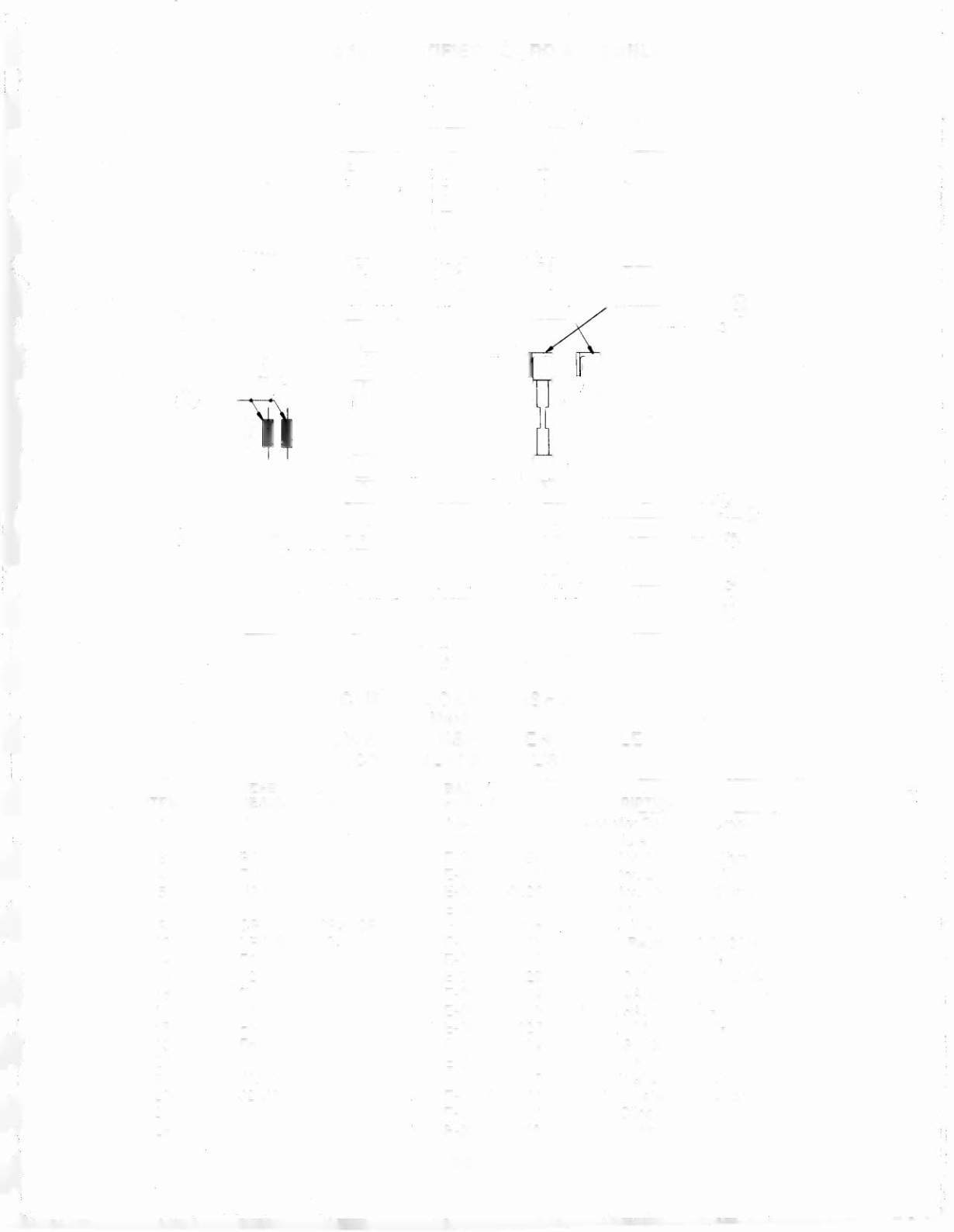

RECTIFIER BOARD ASSEMBLY
(Part of)
A2: POWER TRANSFORMER MODULE
COMPONENT PARTS LIST
II
REFERENCE
BALLY
ITEM
DESIGNATION
PART
#
DESCRIPTION
I
1
P/OA2
AS-2518-18
Rectifier Board Assembly,
~
Complete
3
R1
E-00104-0092
Resistor, 10%, 600 Ohm, 10W
4
R2
E-00104-0091
Resistor, 25 Ohm, 5W
5
R3
E-00105-0226
Resistor, 5%, 100K Ohm, 1f4W
I
7
VR1
E-00623
Varistor
9
CR1, CR2, CR3, CR4
E-00587 -0006
Diode (IN4004)
~
12
BR1, BR2, BR3
E-00602-0003
Bridge Rectifier (VJ248 VARO)
14
F1
E-00133-0010
Fuse,10A,32V,3AG
15
F2
E-OO133-0028
Fuse,
3/4A,
250V, 3AG, S.B.
16
F3
E-OO133-0004
Fuse, 4A, 32V, 3AG
17
F4
E-00133-0005
Fuse, 5A, 32V, 3AG
II
18
F5
E-00133-0027
Fuse, 20A, 32V, 3AG
19
F6
E-00133-0024
Fuse, 3A, 3AG, S.B.
21
E-00684
Test Point
22
J1. J3
E-00715-0010
8 Pin Wafer Connector
-
23
J2.J3
E-00715-0011
10 Pin Wafer Connector
25
E-00148-0021
Fuse Clips
26
E-00148-0022
Fuse Clips
~
