GENERAL
ILLUMINATION
.,...-
24

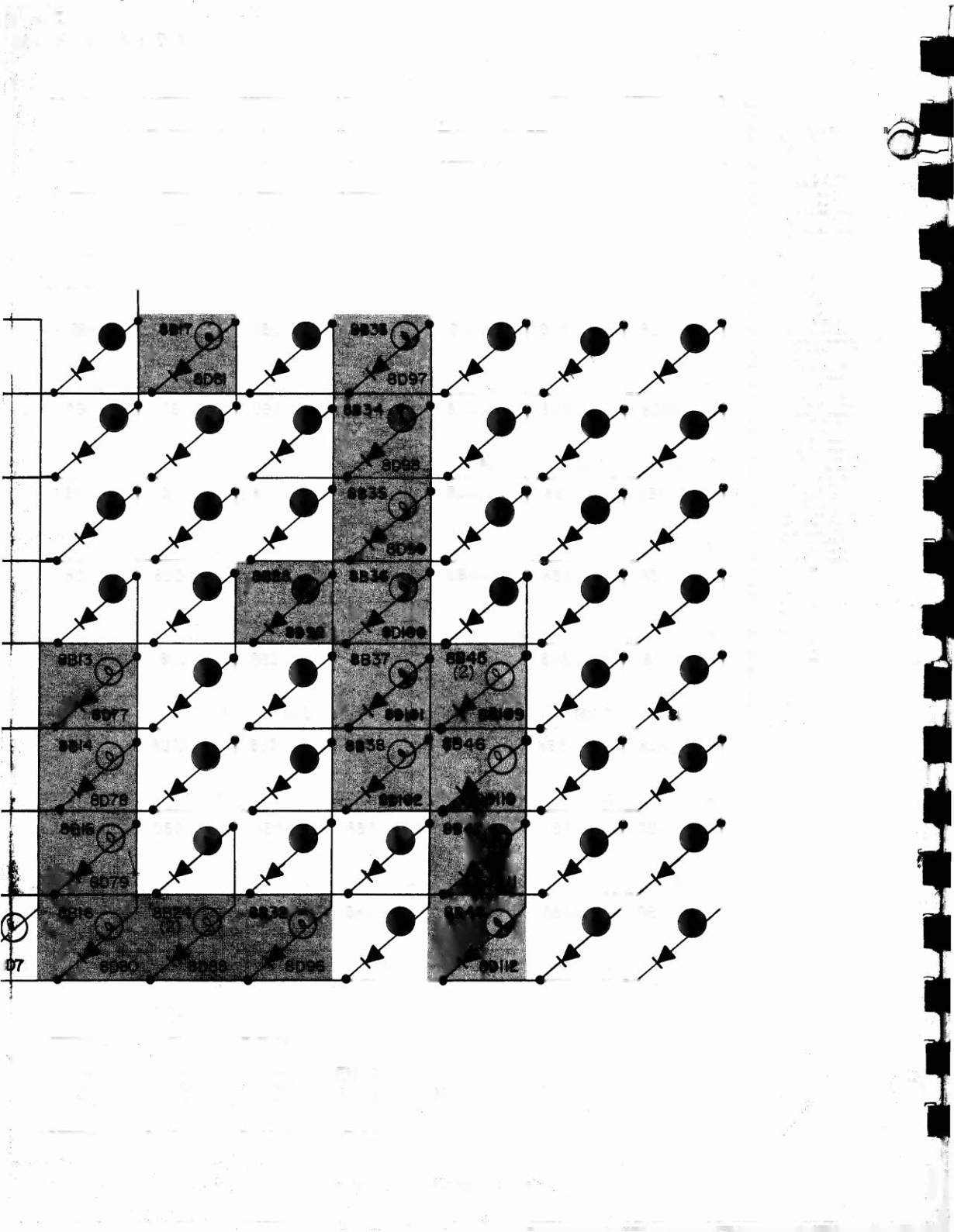

Playfield Lamp Wiring Diagram ...
Bulb
No.
Function
01
Same Player Shoots Again
02
Ball in Play
03
Til t
04
Game Over
05
Match
06
High score to date
07
Multi-Ball
Timer
08
Right magnet Lamp
#
I (Bottom)
09
Right magnet Lamp #2
10
Right magnet Lamp #3
II
Right magnet Lamp #4
12
Right magnet Lamp #5 (top)
IJ
")."
14 "0 "
15
"R"
16
"D"
17
#1 Target
18
#2 Target
19
#3 Target
20
#4 Rollover
21
#5 Rollover
22
Left Drain Shield
23
Righi Drain Shield
24
Mini-field Illumination (X2)
25
Right 3-Bank
26
2X Scoring
27
Keep Shooting (Playfield)
28
Mini-field Special
29
Left 3 Bank
30
Loop Spots Letter
31
Loop Spots X Value
32
Mini-field Illumination
33
5-Bank Itl Arrow (Left)
34
5-Bank
112
Arrow
35
5-Rank #3 Arrow
36
5-Bank #4 Arrow
37
5-Bank #5 Arrow (Right)
38
Mini-field Illumination
39
Left magnet # I (Bottom)
40
Left magnet #2
41
Left Magnet
tl3
42
Left Magnet
tl4
43
Left Magnet
tl5
(Top)
44
Exira Kick When Lit
45
Lock Lamps (X2)
46
Doubl e-Trouble
Lamp
47
Mini-field Illumination
48
Mini-field Illumination
49 "I"
Bonus
50
"2" Bonus
51 "3" Bonus
52 "4" Bonus
53 "5"Bonus
54
"6" Bonus
55
"7" Bonus
56
"S" Bonus
57
"9" Bonus
58
"10" Bonus
59
"20" Bonus
60
"30" Bonu s
61
2X
62
3X
63
5X
64
lOX
