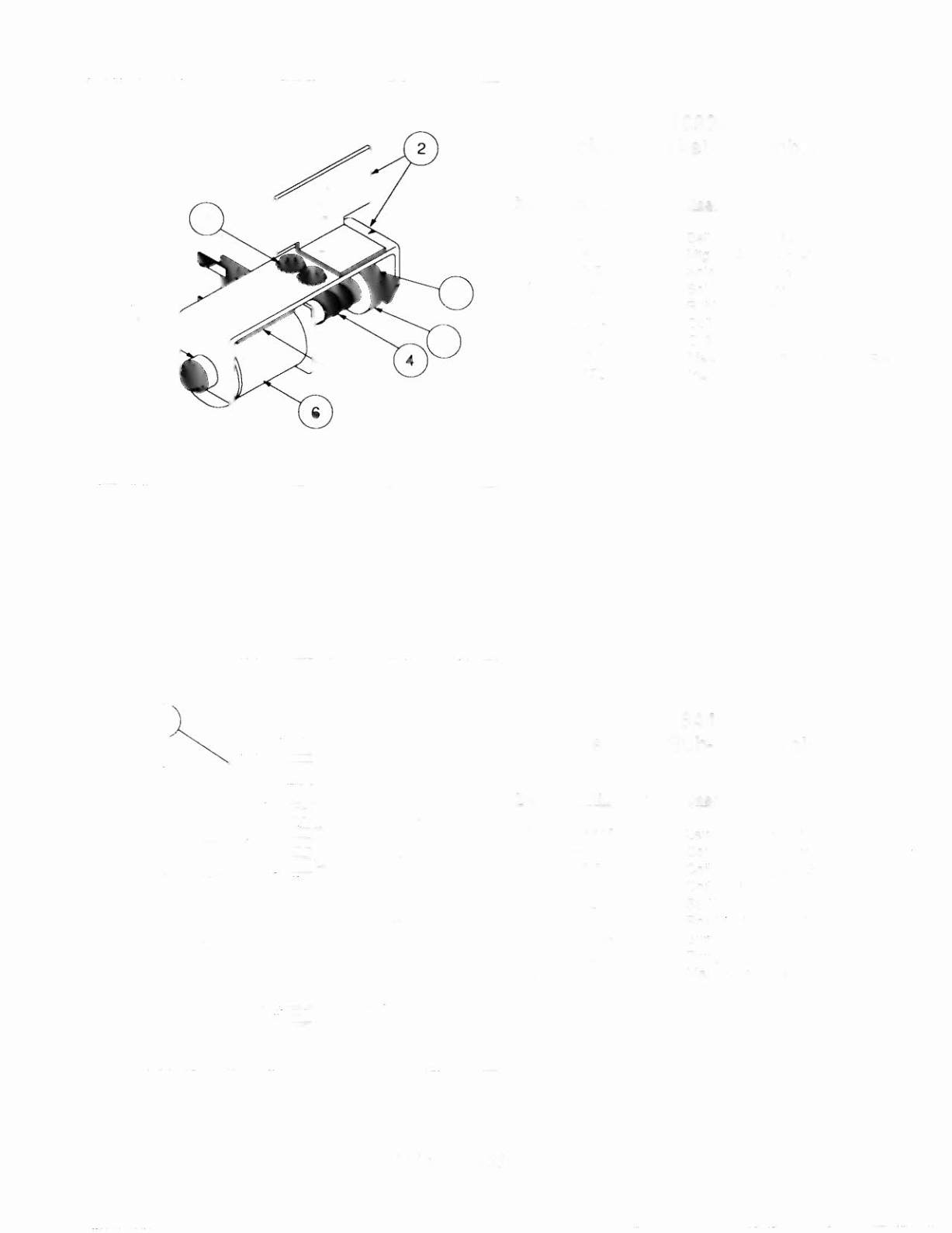

Kicker Bracket Assembly
Item Part Number
Description
1.
A-6306-2
Bell Armature Assembly
2.
A-16934
Mtg_ Kicker Bracket Assembly
3.
01-8-508-T
Solenoid Bracket
4.
10-135
Solenoid Spring
5.
23-6420
Rubber Grommet
6.
AE-23-800
Coil Assembly
7.
03-7067-5
Coil Tubing
8.
4008-01017-04
Mach. Screw, #8-32 x 1/4"P-RH
9.
03-8523
Insulator
A-16445
lever Coil Sub-Assembly
Item Part Number
Description
1.
A-16446
Lever Coil Bracket Assembly
2_ AE-27-1200
Coil Sub-Assembly
3.
01-8-508- T
Coil Retaining Bracket
4_ 03-7066
Coil Tubing
5.
10-128
Spring
6.
20-8716-17
Roll Pin
118
x
3/4"
Long
7.
23-6686
Bumper Plug
8.
02-2364
Plunger
9.
4008-01017 -05 Mach. Screw" #6-32 x 5/16
