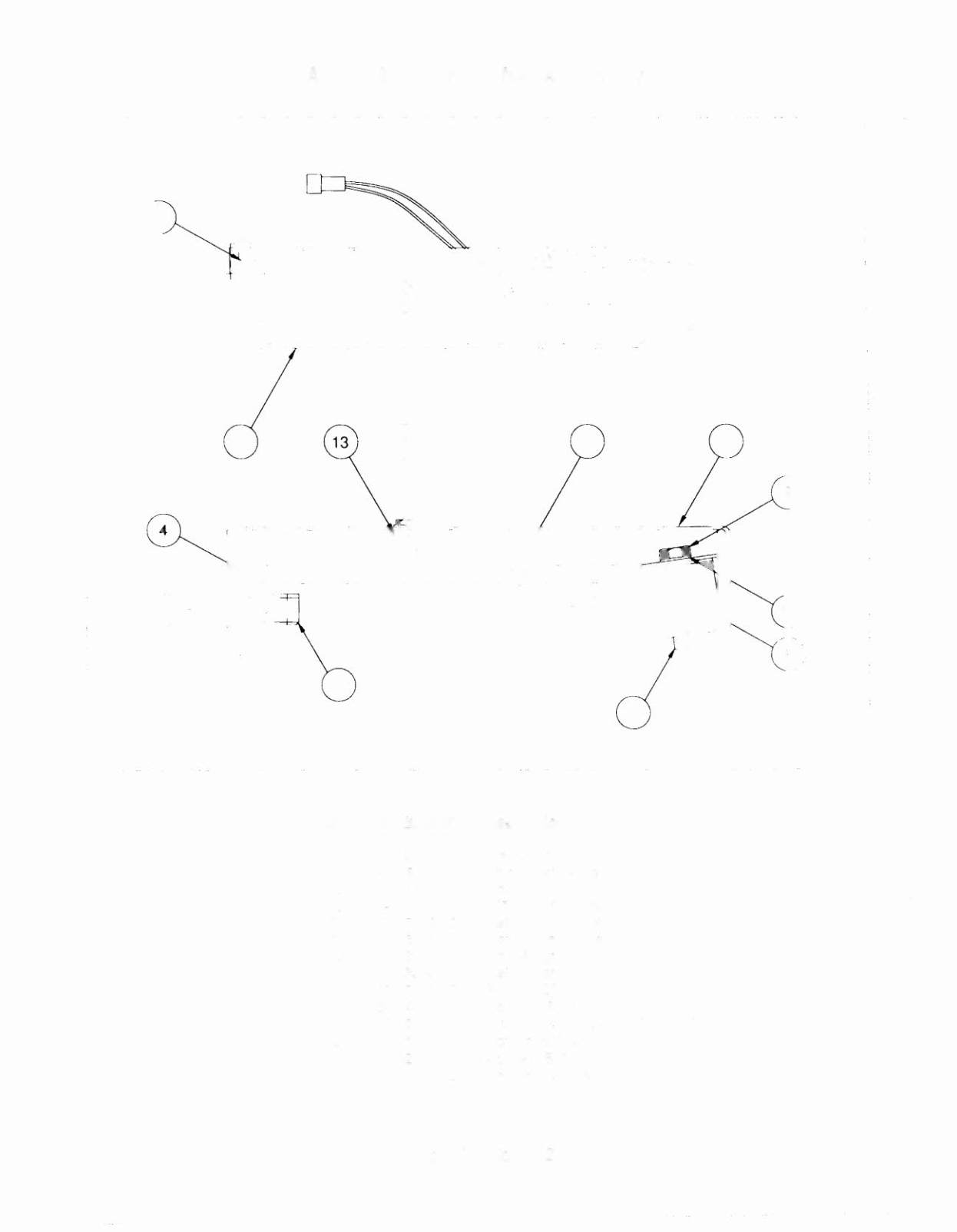

A-16769 Arm Lifter Assembly
8
14
12
4
(5) -
I
L
-=
clJ~rr
G
\
2
. _ - - - -
_ _
...
-
_ _
- - -
.
_ _
--
- - - - -- _ ._- - -
Item Part Number
Description
1_ 01-11980
Arm Lifter
2.
A-16768
Pivot
&
Hub Assembly
3_ 02-4816
Shaft
4.
20-8712-12
"E"-Ring, 1/8" Shaft
5.
4008-01083-03
Set Screw, 8-32 x
1/2"
6_ A-12158-1
Coil
&
Conn. Assembly
7_ 02-4888
Core-Magnet
8.
03-7655-4
Cable Clamp
9.
4420-01117-00
Nut,
1/4-20
Hex.
10.
02-4844
Spacer. Magnet
11.
4106-01115-16
Sh. Metal Screw, #6 x 1" PL-HWH
12.
31-1817
Screened Plastic Cover
13.
03-8022-1
Spacer .. 541 L"
14.
4106-01115-06Y Sh. Metal Screw, #6 x
3/8
PL-H
Judge Dredd 2-24
