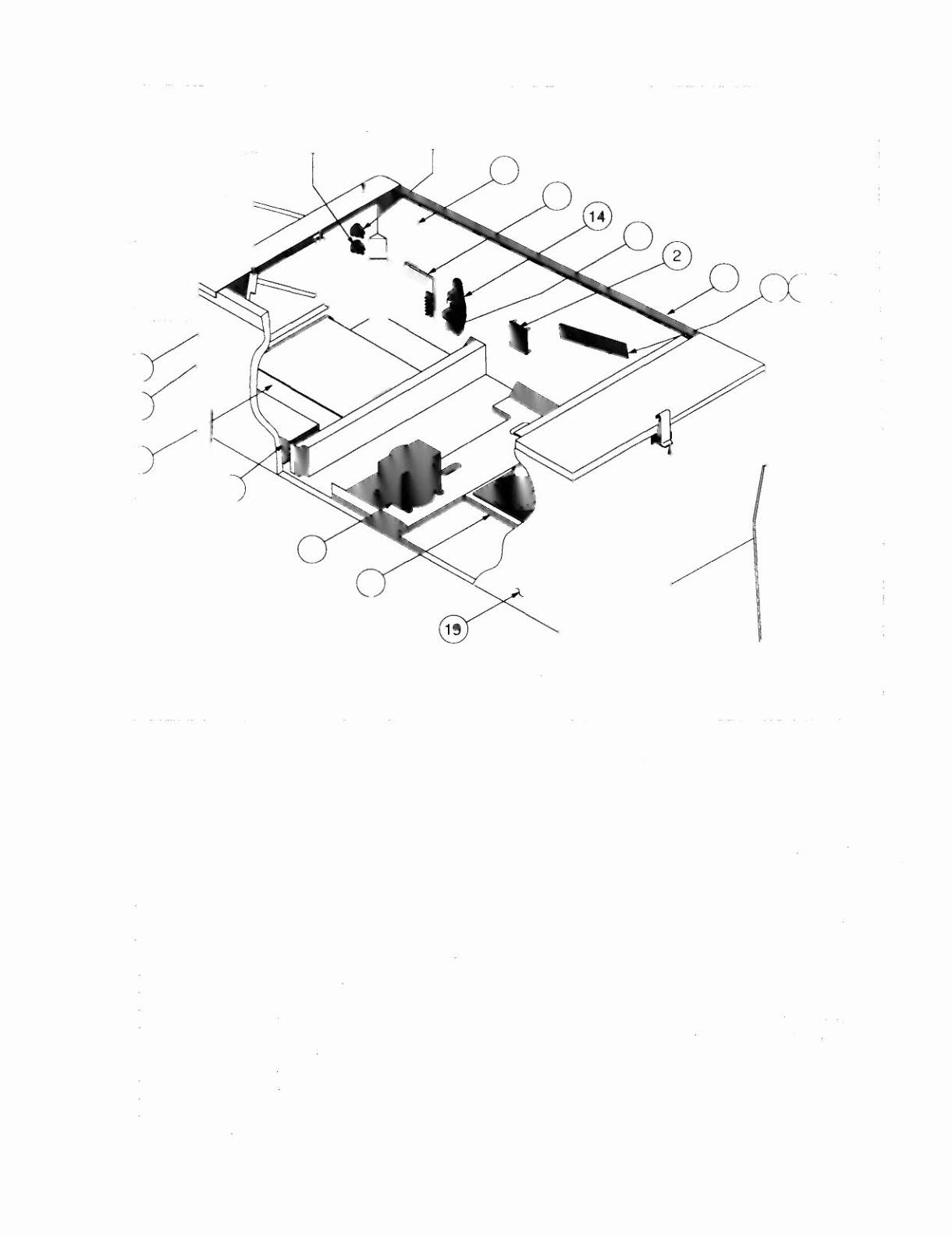

Cabinet Assembly
(1)
7
19
--------
--------------
Item Part Number
Description
1.
A-9174-4
Lever Guide Assembly
2.
A-16943
5-Diode Sw. PC Board
3.
20-9663-1
Start Button
4.
A-16883-6
Flipper Button - Yellow (2 Used)
5.
A-16814-4
Cashbox Assembly
6.
*
Line Filter Assembly
7.
5610-13491-00 WPC Transformer.
115/230v
8.
5555-12929-00 Speaker. 4n. 6". 25w
9.
20-9347
Togg Ie Latch
10.
A-14689
WPC Coin Door Interface Bd.
11 C-10843-BR Metal Leg Assembly
12.
A-16055
Front Molding Assembly
13.
20-6502-A
Plum Bob
14.
A-15361
Tilt Mechanism Assembly
15.
*
Cordset
16.
A-16384-1
Opto Flipper Assembly
17.
01-10714
Line Cord Cover
18.
A-12359-3
Side Molding Assy. (2 Used)
19.
11 -1112-20020 Wood Cabinet
*
See Application Chart (p2-4).
Judge Dredd
Item Part Number
Description
20.
01-11408
Spacer (2 Used)
21.
02-4329-2
Pivot Nut.
11/16"
(4 Used)
22.
02-4352
Pivot Bushing (2 Used)
23.
A-16482
Opto Flipper Assy .. Left Hand
24.
A-16650
Sw. Button
&
Cable Assy. (2 Useu)
a) 20-9846-1
Switch Button-Squ are
25.
20-9663-9
Buy-In Button
26.
A-17206-1
Sw. Button
&
Cable Assy
a) 20-9663-13
Switch Button-Round
• Miscellaneous Parts:
08-7028-1
rempered Playlield
GldS:,
Wide Body: 23.75" x 43"
Steel Ball. 1
1/16" (6)
Playfield Support Bar. 18" Long
Clip Bracket
Leg Adjuster. 3"
20-6500
01-10797
01-5148
08-7377
2-3
