IMPORTANT NOTICE
PLEASE READ
This pinball game is equipped with a SAFETY FEATURE to prevent shocks from the solenoid
circuit when the coin door is opened. A new interlock switch assembly (part no. A-17077), located
at the lett of the coin door opening, has been added to this game. This assembly is a bracket
containing the existing memory protect switch on the bottom and a new interlock switch on the
top. When the coin door is opened, this new interlock switch opens, breaking the connection to
the +50V and +20V winding of the transformer secondary.
A special tool called the Service Switch Actuator is provided for the serviceman/technician that
repairs the game. This tool is painted yellow and located in a bag stapled inside the cabinet. The
Service Switch Actuator slips over the interlock switch and holds it closed while the coin door is
opened, allowing the serviceman to test and repair the solenoid circuit.

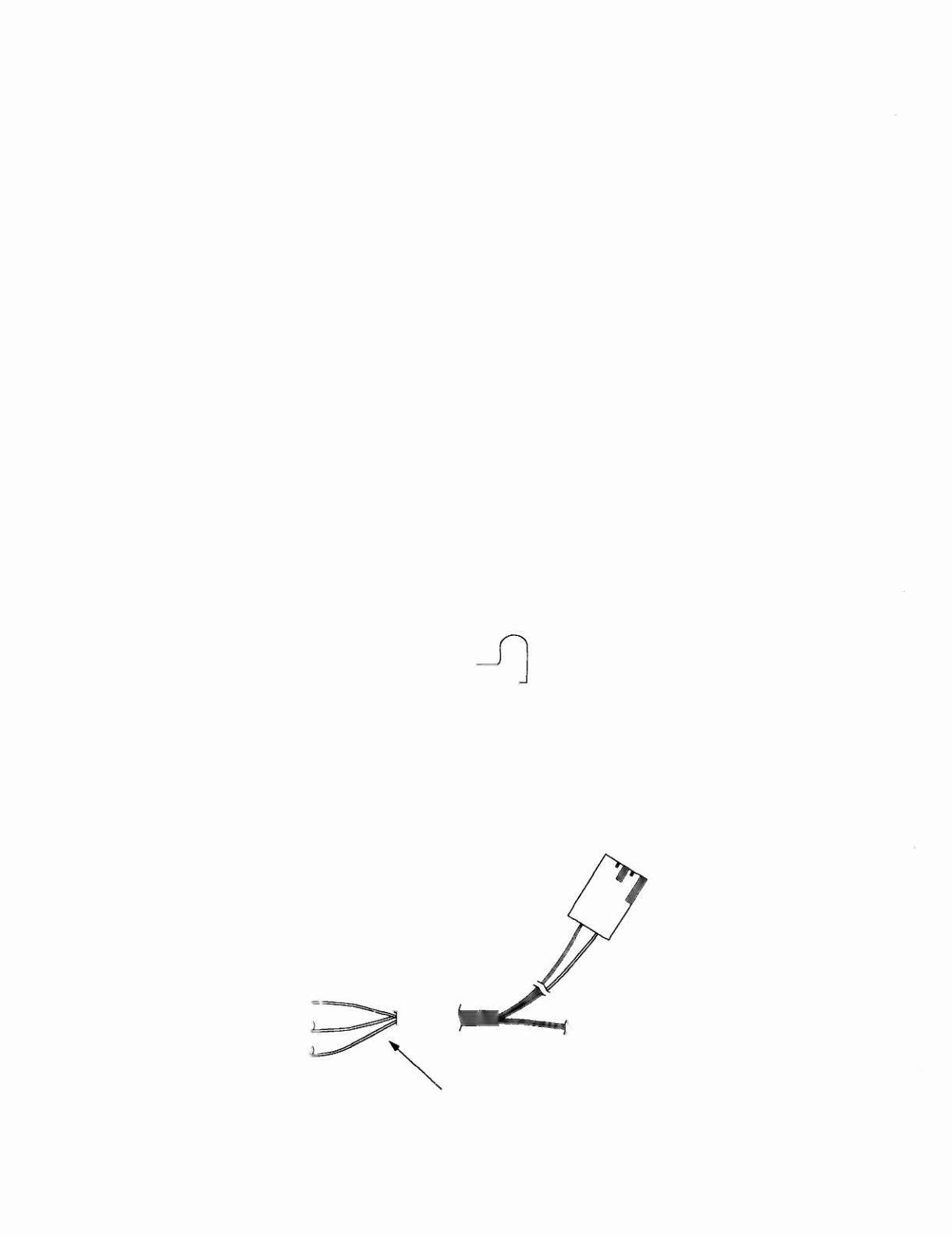

Hold the top interlock switch in, then slide the short end of the Service Switch Actuator over the
top of the interlock switch bracket and the long end over the center of the switch plunger to hold it
in.
SERVICE SWITCH ACTUA TOR
(01·11791)
NEW INTERLOCK SWITCH
(5643·09112·00)
BRACKET
(01·11790)
INTERLOCK SWITCH ASSEMBLY
(A·17077)
