A-15849-L

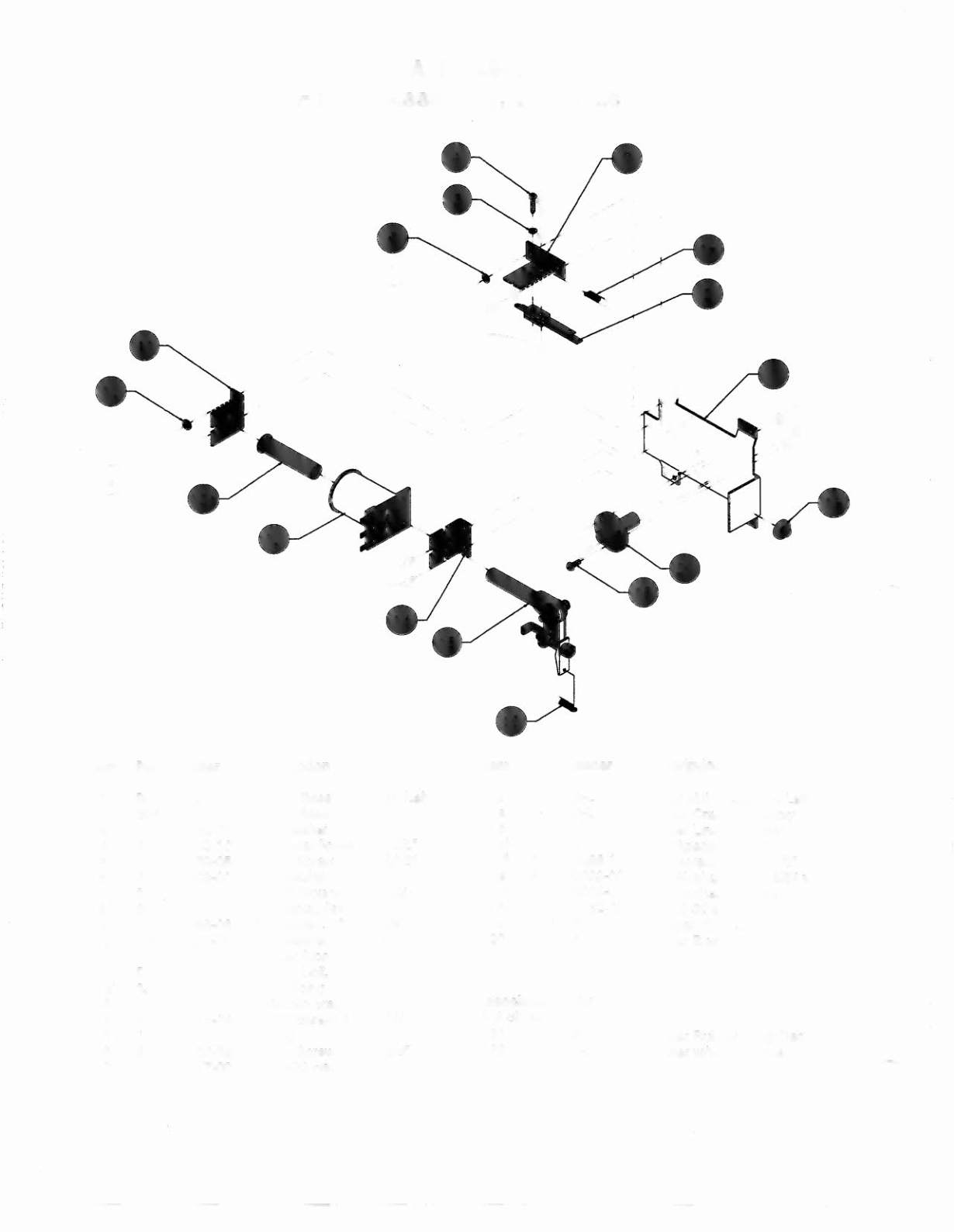

Flipper Assembly, Lower Left
Item Part Number
Description
Item Part Number
Description
1 B-13104-L
Flipper Base Assembly, Left
18 A-15848-L
Crank Link Assembly, Left
2 SW-1A-194
Switch Assembly
a) A-17050-L
Flipper Crank Assembly, Left
3 4701-00002-00 Lockwasher #6 Split
b) A-15847
Flipper Link Assembly
4 4105-01019-10 Sh. Metal Screw, #5 x
5/8-
c) 02-4676
Link Spacer Bushing
5 4008-01079-05 Mach. Screw, 8-32 x
5/16·
d) 4010-01086-14 Cap Screw, 10-32 x
7/8·
6 4701-00003-00 Lockwasher #8 Split
e) 4700-00023-00 Flat Washer,
5/8
x
13164
x 16ga.
7 01-9375
Switch Mounting Bracket
f)
4701-00004-00 Lockwasher # 10 Split
B 20-6516
Speednut, Tinnerman
g) 4410-01132-00 Nut 10-32 ESN
9 4010-01066-06 Cap Screw, 10-32 x
318·
19
23-65n
Bumper Plug,
5/8"
10 4701-00004-00 Lockwasher #10 Split
20 03-7568
Flipper Bushing
11 A-12360
Flipper Stop Assembly
12 FL-11630
Flipper Coil, Red
a)
03-7066-5
Coil Tubing
13 01-7695
Solenoid Bracket
Associated Parts:
14 4006-01017-04 Mach. Screw, 6-32 x
1/4"
(Not Shown)
15 10-364
Spring
21 23-6695
Flipper Rubber Ring, Red
16 4006-01005-06 Mach. Screw, 6-32 x
318"
22 20-9250-5
Flipper w/Shaft, White
17 4406-01117-00
Nut 6-32 Hex.
2-14
