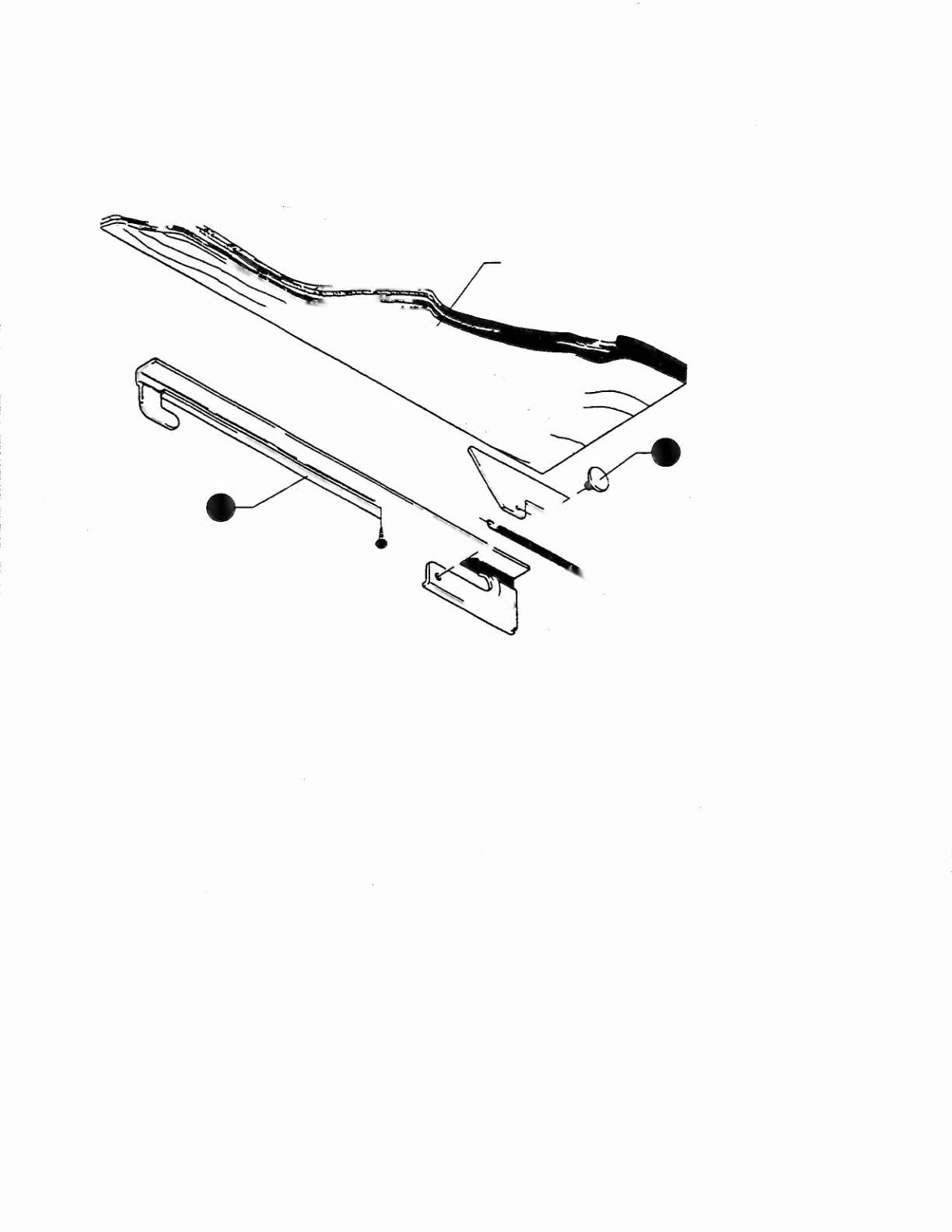

Playfield Slide Mechanism Assembly
(Left Assembly Shown)
Underside of Playfield
shown for reference
A-17749.1-1
Playfield Slide Mechanism Assy.
Left Assembly
A-17749.1-2
Playfield Slide Mechanism Assy.
Right Assembly
Item Part Number Description
Item Part Number Description
1 01-12304-1
2 01-10664.1
3 02-4615
Slide, Left
Lever Retainer
Shoulder Rivet
1 01-12304-1
2 01-10664.1
3 02-4615
Slide, Right
Lever Retainer
Shoulder Rivet
AssociatedPart:
Associated Part:
4 10-439
Spring
4 10-439
Spring
2-27
