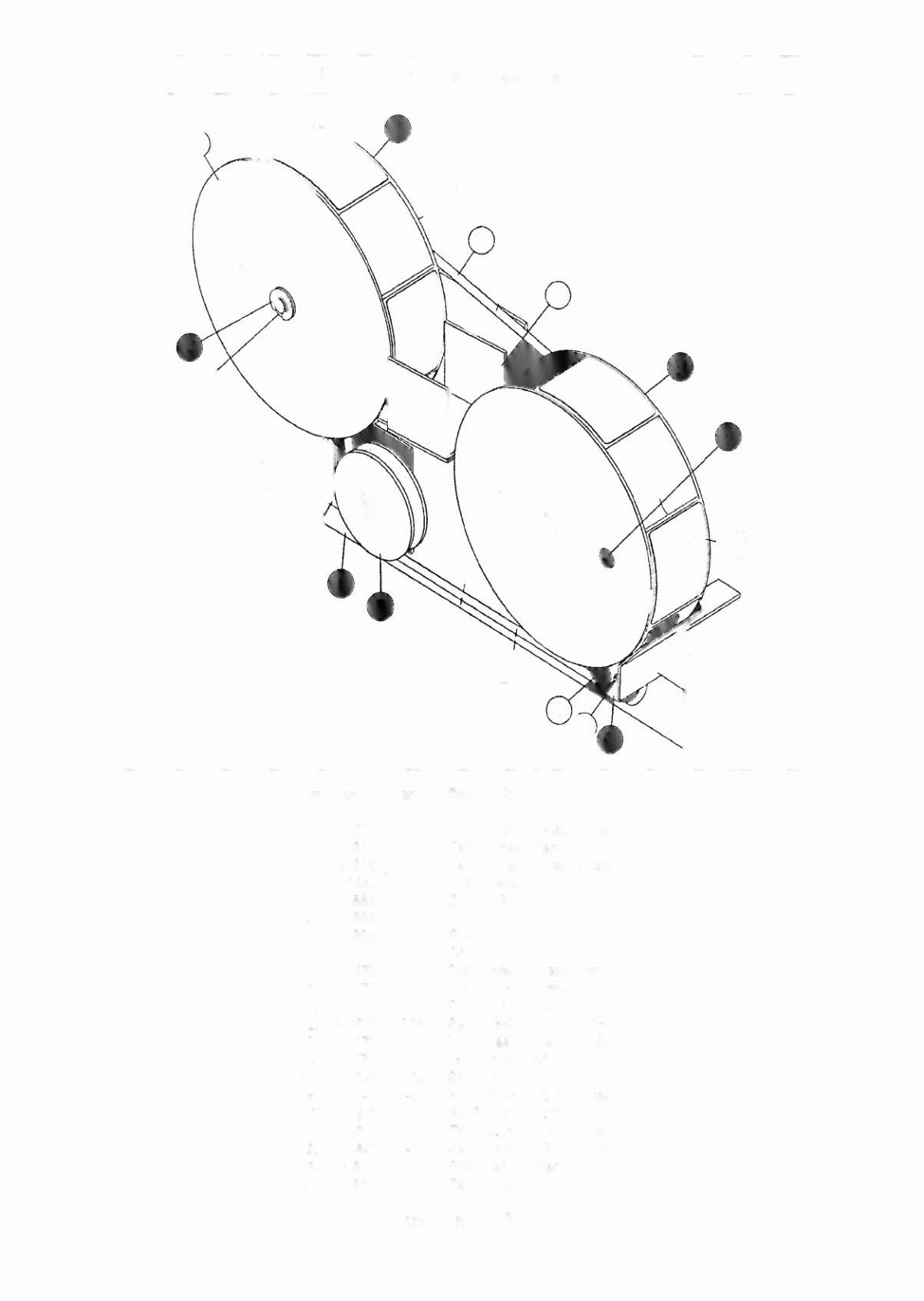

A·14741 Ferris Wheel Assembly
~
/@
5
10
~
®
21
15
~
~
Item Part Number
Description
1.
A-14740
Main Mounting Plate Assembly
2.
03-8124
Ferris Wheel, Red
3.
03-8125
Ferris Wheel Cover (2 Used)
4.
A-14593-1
Motor Assembly
5.
23-6663
Drive Bek
6.
03-8086
Pulley
7.
03-8281
Pulley
8.
02-4290
Collar
9.
A-14737
Pulley Bracket Assembly
10. A-14743
Mini-Ramp Assembly
11. 03-8126
Drive Belt Washer
12. 4006-01017-05
Sems #6-32 x
5/116
P-RH (2)
13. A-14738
Left Wheel Guide Assembly
14. 20-8712-25
"E" Ring (3 used)
15. 4106-01033-08
SMS #6 x 112 PH (4 used)
16. 4700-00072-00
FW 17/64id x
1/2
od (3 used)
17. 4008-01076-06
Set Screw #8-32 x 3/8
18. 4700-00007-00
FW
5132
id x 7/16 od
(?
used)
19. 4006-01017-04
Sems #6-32 x
1/4
P-RH (4)
20.
03-8126-1
Drive Bek Washer
21.
03-8124-1
Ferris Wheal, Blue
Hurricane
2-23
