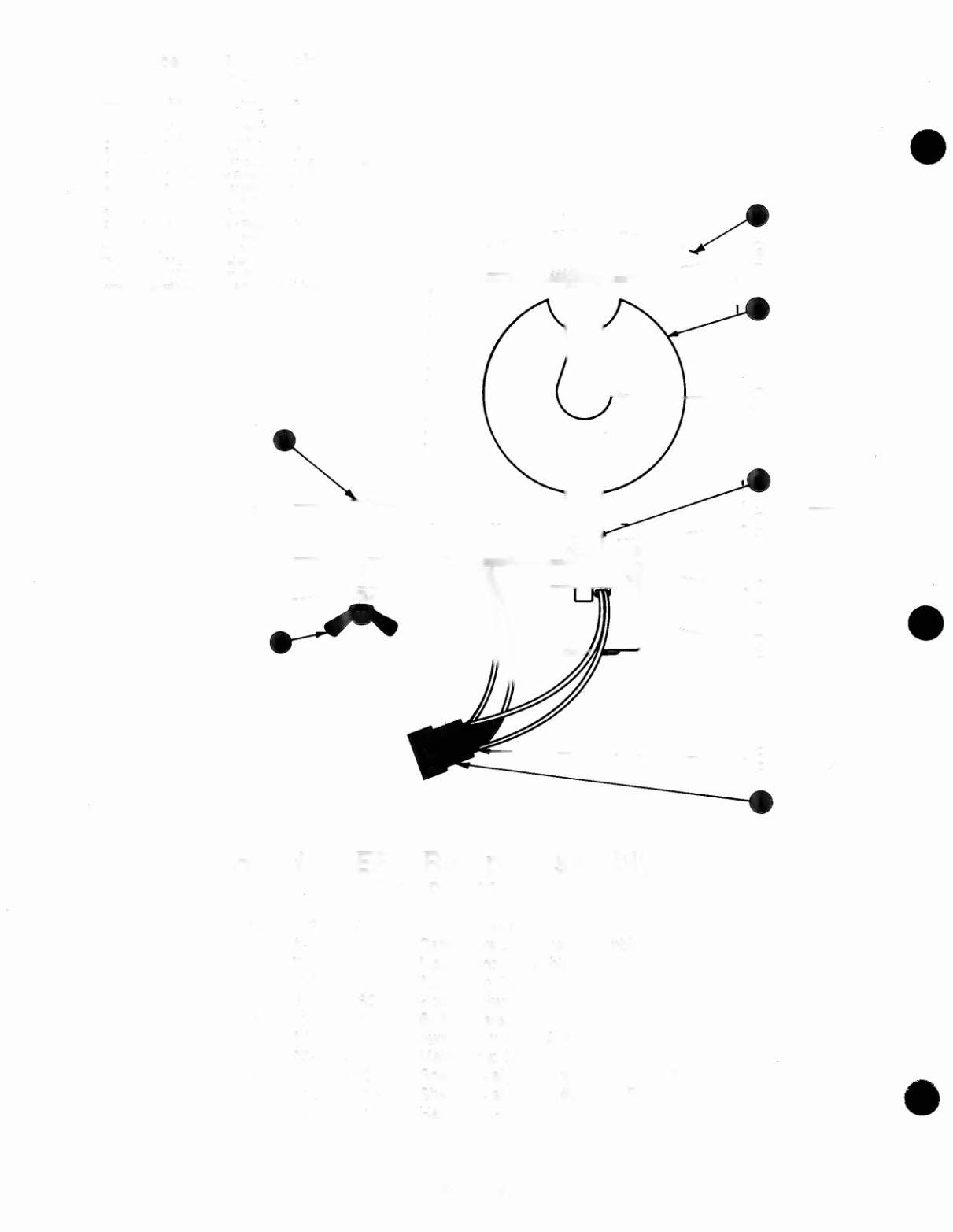

Police Light Assembly
pin
C-10933
Item Part No.
Description
1 5791 -09111-00 Connector Shell
2 5820 -09080-00 Connector
Pin
3 14-7939
Motor , 100 rpm, 24VAC
4 4004 -01003-05 Mach . Screw (4-40 x
5/16,
P-PH-S)
5 4006 -01076-04 Cap Screw (6·32 x
1/4)
6 02-4239
Motor Shaft Collar
7 24-8771
Bulb, #1683, 28V
8 B-10917
Reflector Assembly
9 B-10934
Motor Plate & Socket Assembly
10'
03- 7981
Red Lens
11'
A·11053
Lens Clip Assembly
12'
4700 -00023-00 Washer
13'
4408 -01120-00 Wing Nut
Nole: Items marked w~h asterisk ") are not part of C·10933 .
HIGH SPEED
Ramp Assembly
pIn
D-10905
Item
1
2
3
4
5
6
7
8
9
10
Part No.
A-11063
0-10950
H-10909
SW-1A-160
01-3670-1
01-8227
03-8005
4104-01001-04
4106-01018-04
4404-01117-00
Description
Ramp Wire & Bracket Assembly
Main Ramp Assembly
Top Ramp Cable
Rollover Switch
Switch Plate, Flat
Switch Cover Bracket
Main Ramp Cover
Sheet Metal Screw, #4
x
1/4,
P-PH-A
Sheet Metal Screw,
#6
x
1/4,
P-PH-ST
Hex Nut, 4-40
•
