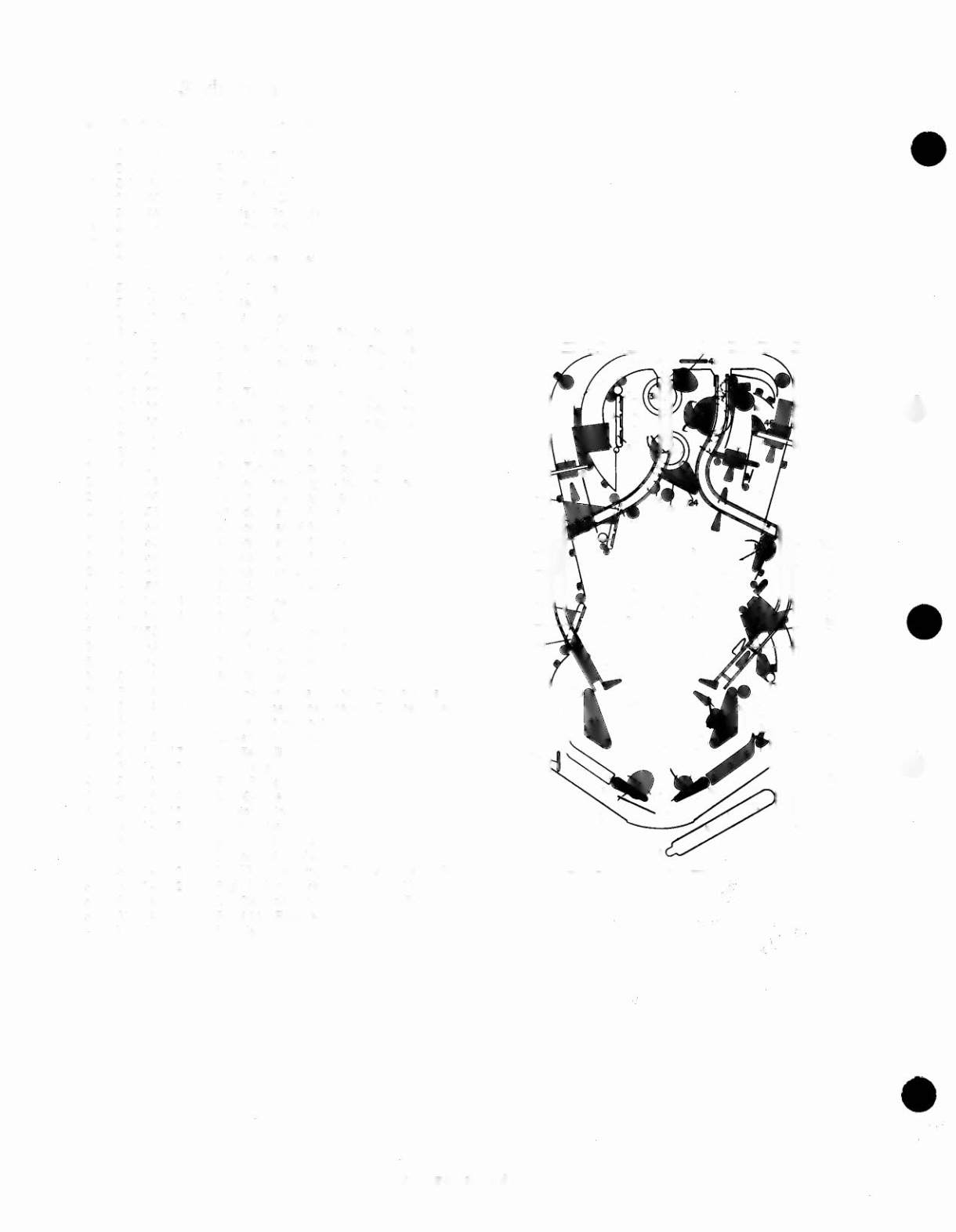

Switches
Item Part No.
Description
1 A-8476
Plumb Bob Tilt
2 B-6572
Ball Roll Tilt
3 SW-1A-126
Credit Button
4 904845'
Right Coin Chute (' - Coinco pIn)
5 904845'
Center Coin Chute
6 904845'
Left Coin Chute
7 904704'
Slam Tilt
8 5641-09369-00 High Score Reset
9 17-1067
Outhole
10 5647-09957-00 Left Trough
11 5647-09957-00 Center Trough
12 5647-09933-00 Right Trough
13 A-l1022
Red Target (Lwr Left Stoplight Bank)
14 A-11054
Yellow Target (Lwr Left Stoplight Bank)
15 A-11055
Green Target (Lwr Left Stoplight Bank)
16 17-1012
Eject Hole
17 A-11022
Red Target (Upr Left Stoplight Bank)
18 A-11054
Yellow Target (Upr Left Stoplight Bank)
19 A-11055
Green Target (Upr Left Stoplight Bank)
20 SW-1A-124
Left Flipper Return Lane
21 SW-1A-124
Right Flipper Return Lane
22 A-11022
Red Target (Right Stoplight Bank)
23 A-11054
Yellow Target (Right Stoplight Bank)
24 A-11055
Green Target (Right Stoplight Bank)
25 A-8253
Standup Target Arrow - 1
26 A-8253
Standup Target Arrow - 2
27 A-8253
Standup Target Arrow - 3
28 A-8253
Standup Target Arrow - 4
29 A-8253
Standup Target Arrow - 5
30 A-8253
Standup Target Arrow - 6
31 SW-1A-124
Left Outlane
•
32 SW-1A-124
Right Outlane
33 A-7459-7
Upper Left Jet Bumper
34 A-7459-7
Lower Left Jet Bumper
35 A-7459-7
Right Jet Bumper
36 SW-1A-138
Ball Shooter
37 SW-1A-150-1
Left Flipper Lane Change (Engine Revs)
38 SW-1A-150
Right Flipper Lane Change (Engine Revs)
39 A-11047
Upper Left Hideout
40 17-1085
Lower Left Hideout
41 SW-1A-117
Playfield Tilt
-
42 SW-1A-160
Left Ramp
43 SW-1A-160
Right Ramp
44 SW-1A-118
Left Spinner
45 SW-1A-118
Center Spinner
46 SW-1A-118
Right Spinner
47 A-11047
Upper Right Hideout
48 17-1085
Lower Right Hideout
49 SW-1A-122
Left Kicker (scoring)
[Kicker Actuating Sw:
50 SW-1A-122
Right Kicker (scoring)
A-4834-H;
51 SW-1A-157
Left Star Rollover
B-8734 wiRC]
52 SW-1A-157
Right Star Rollover
53-64 Not Used
Not Used
