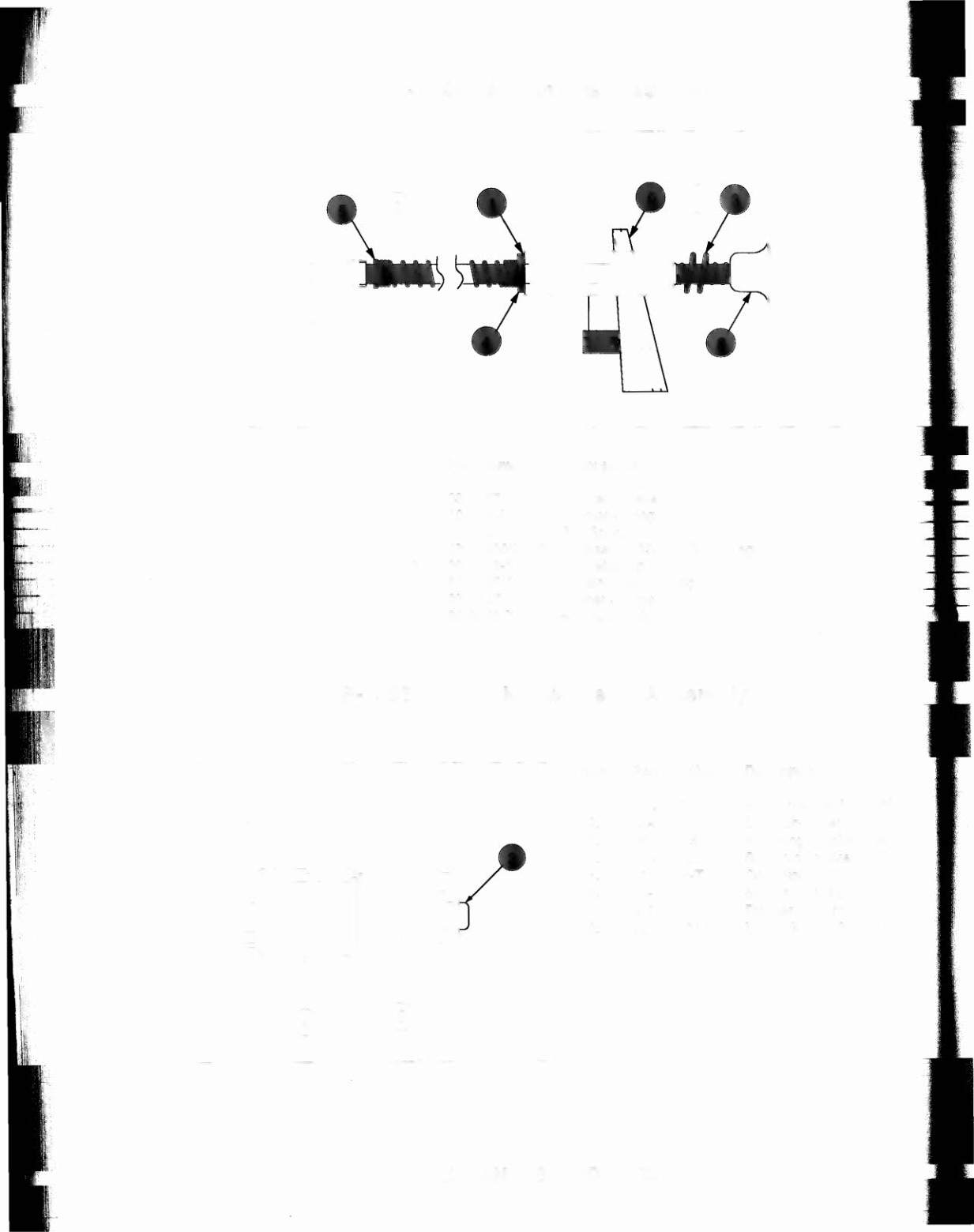

Shooter Assembly
Item Part Number Description
1
2
3
4
5
6
7
8
03-7357
10-148-4
10-149
4700-00051-00
20-8718-1
21-6645-1
23-6327
20-9253-7
Shooter Sleeve
Shooter Spring
Rod Spring
Flatwasher, 25/64 X 5/8 X 16ga.
"C"-Retalnlng Ring
Ball Shooter Housing
Rubber Shooter Tip
Rod Assembly
8-13959 8all Kicker Mech. Assembly
4
Item Part Number Description
1.
01-9787
Bell Armature Assembly
2.
23-6420
Coil Sub-Assembly
3.
03-7067-5
Mounting Bracket Assy.
4.
AE-23-800
Solenoid Bracket
5.
01-8-508-T
Coil Tubing
6.
10-135
Solenoid Spring
7.
A-13270
Rubber Grommet
8.
4008-01017-04 Mach. Screw, 8-32 x 1/4"
