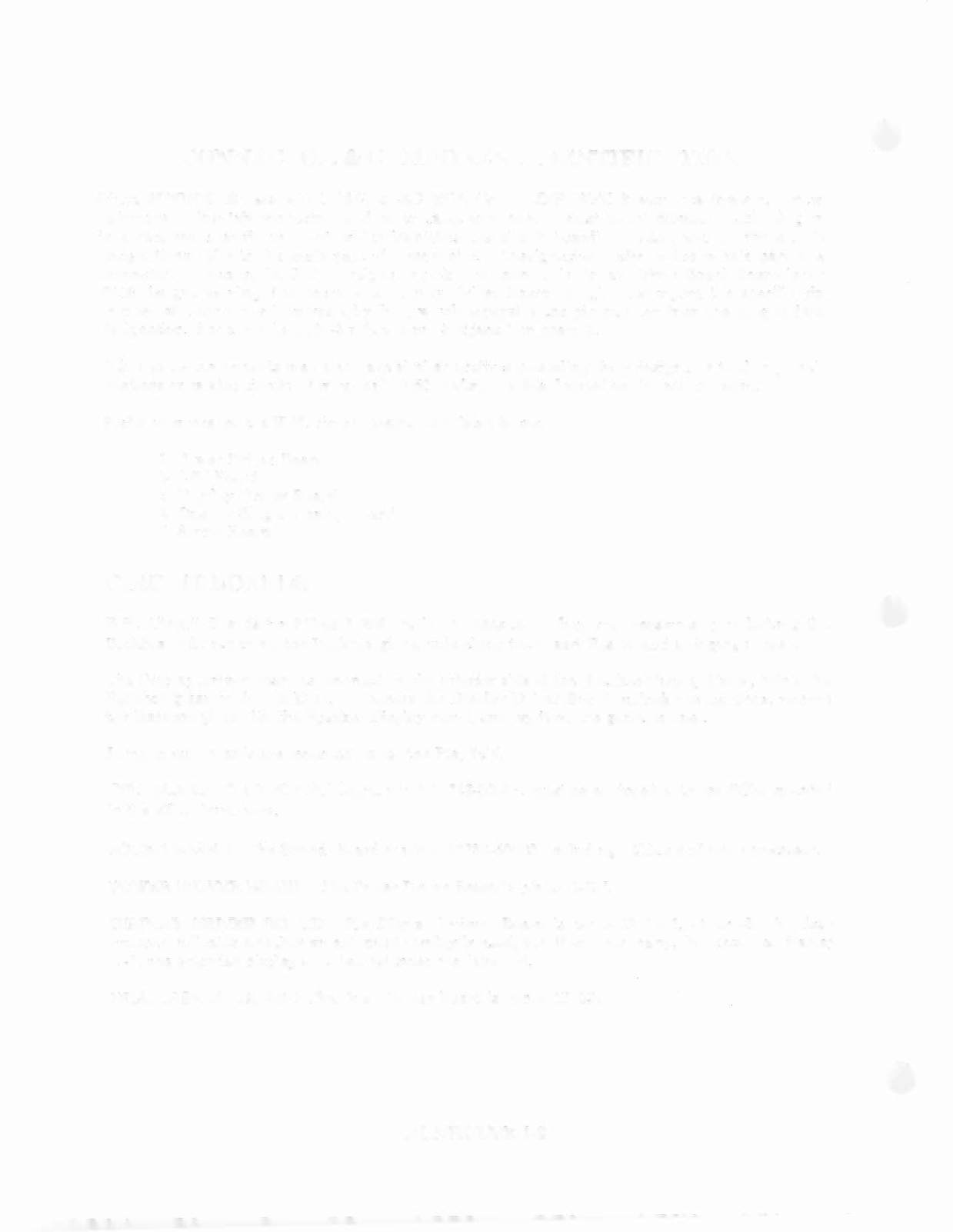

CONNECTOR
&
COMPONENT IDENTIFICATION
Since FUNBOUSE uses WILLIAMS ELECTRONICS GAMES' WPC Electronics System, a new
technique to identify connectors and other game components must be introduced . Each plug or
jack receives a prefix number (which identifies the circuit board), a letter, and a number.
J-
designations refer to the male part of a connector. P-designations refer to the female part of a
connector. For example, JI0l designates jack 1 of board 1 (a Power Driver Board Board jack);
P306 designates plug 6 of board 3 (a Display Driver Board plug). Identifying the specific pin
number of a connector involves a hyphen, which separates the pin number from the plug or jack
designation. For example, JI01-3 refers to pin 3 ofjack 1 on board 1.
Other game components may also have similar prefixes preceding their designator to clarify their
locations or related circuit. For example, F501 refers to a fuse located on the Sound Board .
Prefix numbers for the WPC circuit boards are listed below.
1- Power Driver Board
2- CPU Board
3- Display Driver Board
4- Dual or Single Display Board
5- Sound Board
cracurr
BOARDS
WPC Circuit Boards for FUNBOUSE are in the backbox. They are accessible by unlocking the
Backbox lock, removing the Backbox glass, unlatching the Insert Board, and swinging it open.
The Display Driver Board is mounted on the interior side of the Speaker/Display Panel, below the
Backbox glass in the Backbox . To access the Display Driver Board, unlock the Backbox, remove
the Backbox glass. lift the Speaker/Display Panel, and lay it on the game cabinet .
Lamp circuit boards are mounted under the Playfield .
CPU BOARD The WPC CPU Board, pin A-12742-50003,must be equipped with the ROM specified
in the ROM Summary .
SOUNDBOARD The Sound Board is pin A-12738-50003,including ROMs and microprocessor.
POWER DRIVER BOARD The Power Driver Board is pin A-12697.
DISPLAY DRIVER BOARD The Display Driver Board is pIn A-12739-1, -2, or -3. The dash
number indicates whether an extended display is used. and if so, how many. No extended display
=
-I, one extended display
=
-2, two extended displays
=
-3.
DUALDISPLAYBOARD The Dual Display Board is pin A-12793.
FUNHOUSE 1-2
•
•
•
