486
o
5
:6.
~!~~
~®
1
~lB ~ 18
18
o
1~
_________
LI
8 •.-------
__
--.1
er---------
ME0.------::----
)-----CONS.----c
1
I
23
Part Number
1. 0-8104
2. A-8112-L
3. B-8107
4. 3A-7537
5. IA-6812
6. 12A-6511
7. IA-6806
8. 8-7894
9. 8-7875-486
10. D-7931-3S
11. D-7931-5S
12. B-2472-5R
13. B-7060
14. 23A-6519-5
IS. B-8I02
16. A-8035
17. B-8103
18. A-5844-42
19. A-5844-9
20. A-5844-8
21. A-SI08
22. 0-7473
23. 30B-3573
24. B-S055
25. 23A-6300
26. 23A-6301
27. 23A-6302
28. 23A-6303
29. 23A-6304
30. 23A-6305
31. 23A-6306
32. 23A-6307
33. 23A-631O
34. 3B-7535
PLAYFIELD PARTS
Description
TOP BALL RAIL ASSY
BALL GATE ASSY
BALL GUIDE ASSY
STAR ROLLOVER BUTTON
MOUNTING BRACKET FOR WIRE
FORM
BALL GATE WIRE FOR
M
MOUNTING BRACKET FOR WIRE
FORM
JET BUMPER ASSY
SPINNING TARGET ASSY
DROP TARGET ASSY
DROP TARGET ASSY
BALL EJECT ASSY
FLIPPER ASSY
FLIPPER RUBBER
RIGHT BALL RAIL ASSY
STATIONARY TARGET ASSY
BALL SHOOTER RAIL ASSY
ROLLOVER WIRE ASSY
ROLLOVER WIRE ASSY
ROLLOVER WIRE ASSY
FLIPPER RETURN FRAME ASSY
BOTTOM ARCH ASSY
SHOOTER GAUGE
BALL KICKER ASSY
RUBBER RING 5/16"
10.
RUBBER RING 3/4" LD.
RUBBER RING
I" 10.
RUBBER RING 1-1/4" LD.
RUBBER RING 1-1/2" LD.
RUBBER RING 2" J.D.
RUBBER RING 2-3/8" LD.
RUBBER RING 2-7/8" LD.
RUBBER RING 5" I.D.
PLEXIGLASS CRESCENT INShRT
POST ADJUSTMENTS
To make game more conservative or liberal, move
post.
3/16"
as shown in sketch. Spotting holes are provided and can be
seen upon removal of posts.
SUGGESTED SCORE CARDS
CREDIT GAMES
3 Ball 486-14 or 486-33
5 Ball 486-52
EXTRA BALLS
3 Ball 486-66
5 Ball 486-68
38

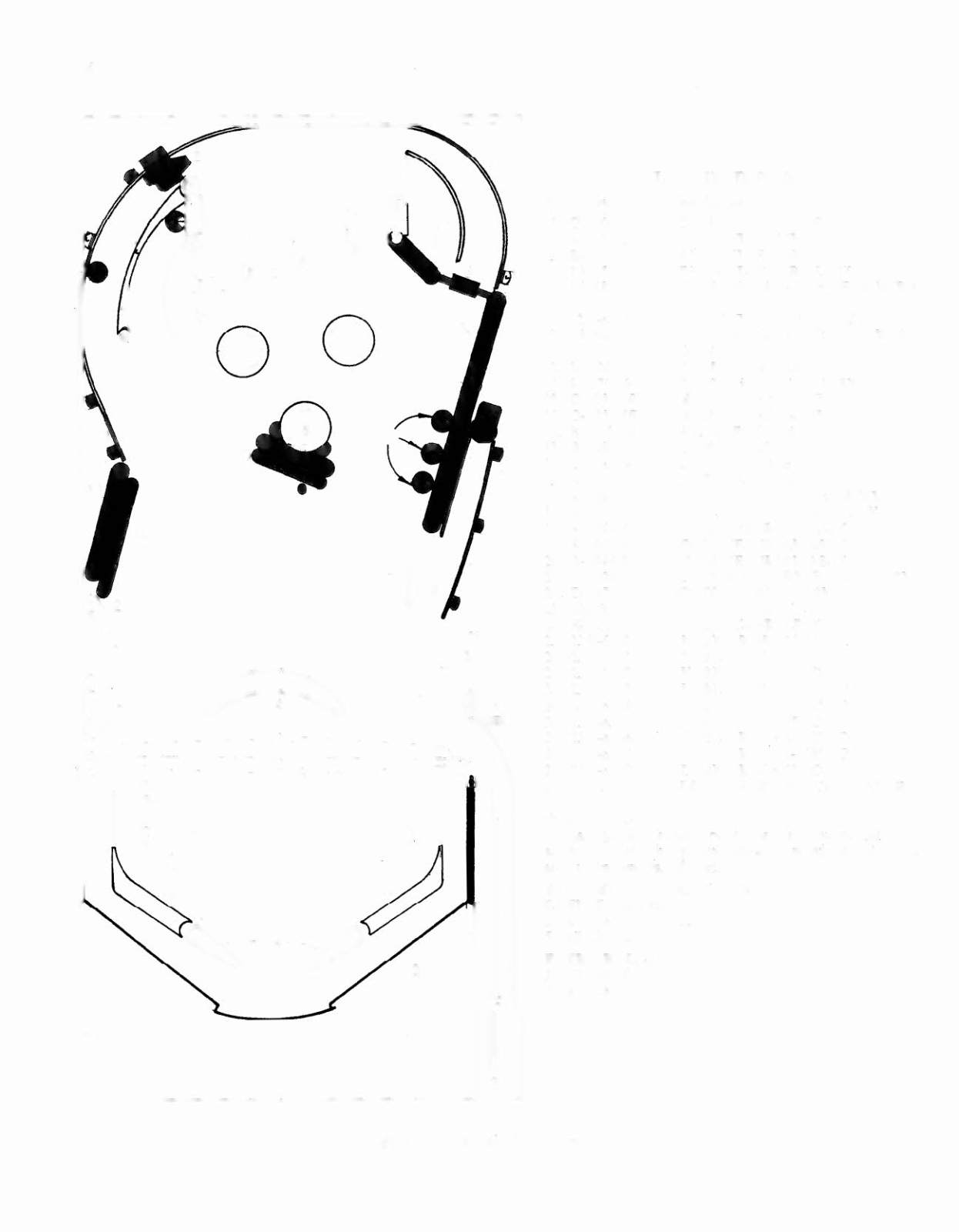

Figure
14.
Playfield Spare Parts
