SWITCH
NO.
01 Plumb Bob Tilt
02 Ball Roll Tilt
03
Credit Button
04
Right Coin Switch
05 Center Coin Switch
06 Left Coin Switch
07 Slam Tilt
08
High
Score to Date Reset
09
Outside Upper Left Star Rollover
10 Inside Upper Left Star Rollover
11 Upper Left Standup
12 "1" Rollover
13 "2" Rollover
14 "3"Rollover
15 "4"
Rollover
16 Top Right Standup
17 Spinner
18 Left Jet Bumper
19 Right Jet Bumper
20 Lower Jet Bumper
21 Upper Right Star Rollover
22 Center Right Star Rollover
23 Lower Right Star Rollover
24 Right Side Standup, Upper
25 Right Side Standup, Center
26 Right Side Standup, Lower
27 Eject Hole
2S 3 - Bank, Right Drop Target
29 3 - Bank, Center Drop Target
30 3 -
Bank, Left Drop Target
31 3 -
Bank,
Series
32 5 - Bank, 1 Drop Target (Top)
33 5 - Bank, 2 Drop Target
34 5 - Bank. 3 Drop Target
35 5 - Bank, 4 Drop Target
36 5 - Bank, 5 Drop Target (Bottom)
37 5 - Bank, Series
38 5 - Bank Stand up
39 Left Target
40
Right Target
41 Left Kicker
42 Right Kicker
43 Left Special Rollover
44 Left Flipper Return Rollover
45 Right Flipper Return Rollover
46 Right Special Rollover
47 Playfield Tilt
48 Outhole
Figure
8.
Playfield

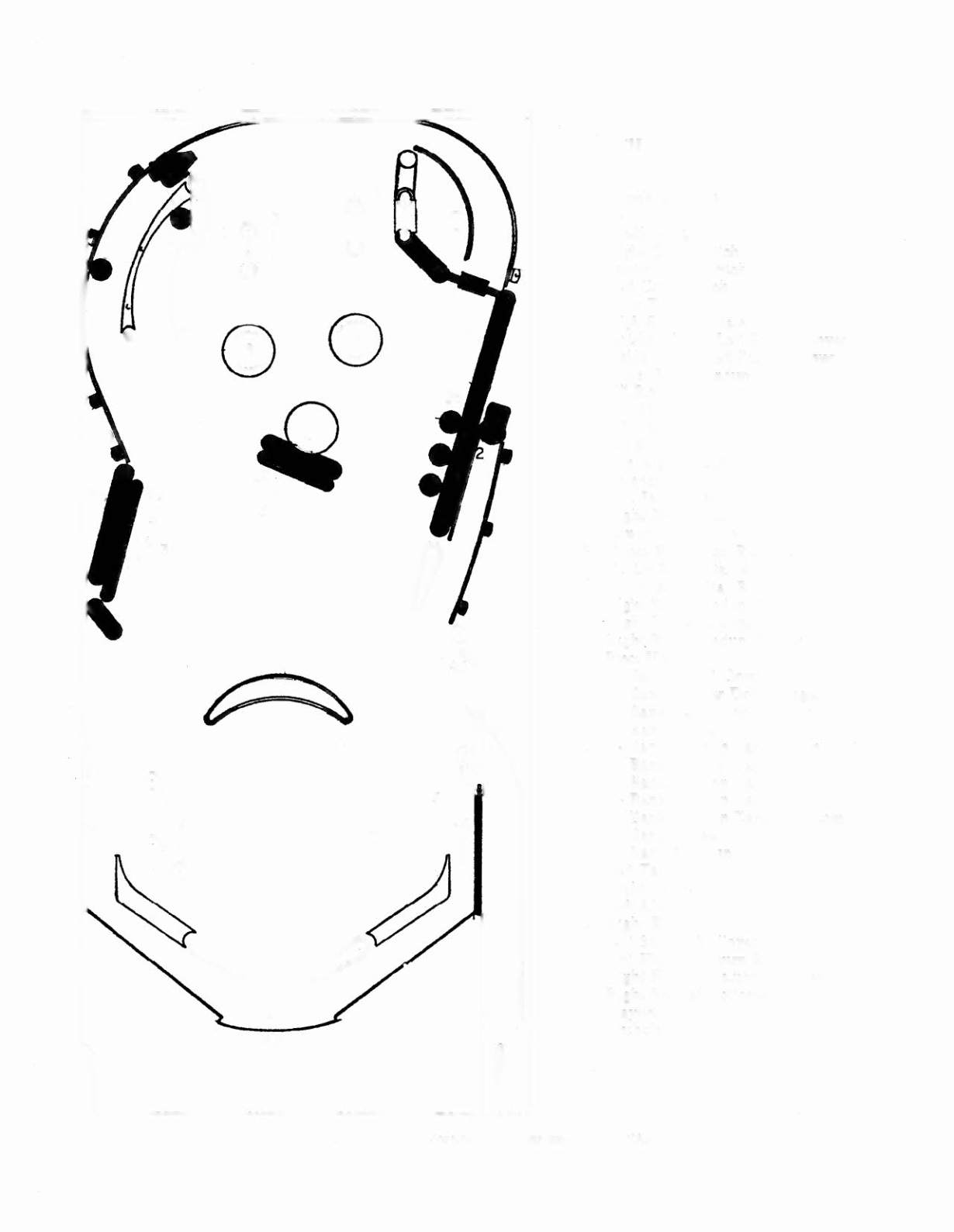

Switch Locations and Switch Chart
