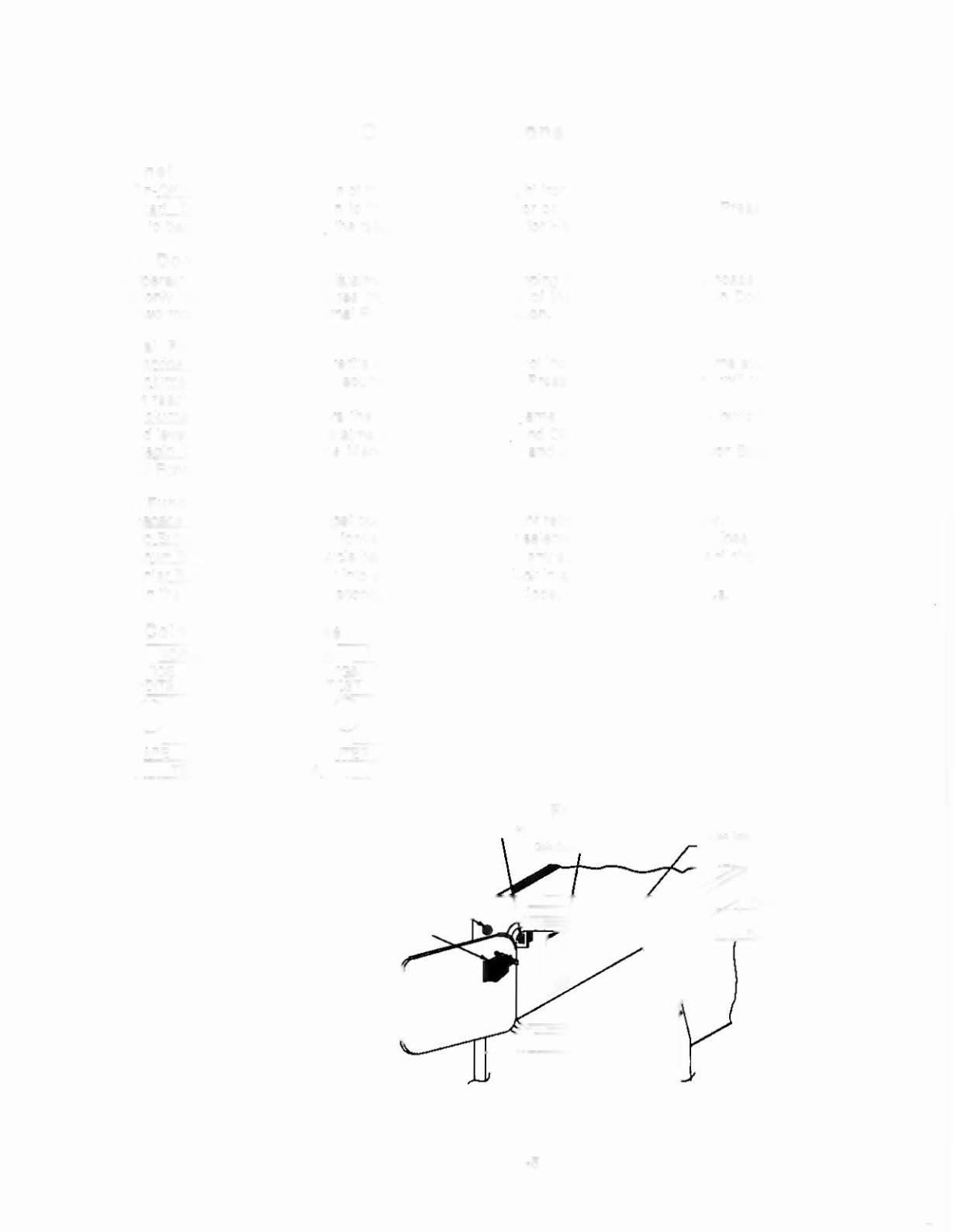

Front Box
Control Locations
Cabinet Switches
The Qn·Off Switch is on the bottom of the cabinet near the right front leg.
The Start Button is a pushbutton to the left of the coin door on the cabinet exterior.
Press the Start
button to begin a game, or during the diagnostic mode, to ask for HELP.
Coin Door Switches
The operator controls ali game adjustments, obtains bookkeeping information, and diagnoses problems,
using only four pushbutton switches mounted on the inside of the coin door. The Cain Door Buttons
have two modes of operation Normal Function and Test Function.
Normal
Function
The Service Credits Button puts credits on the game that are not included
in
any of the game audits.
The Volume Up Button raises the sound level of the game. Press and hold the button until the desired
level is reached.
The Volume Down Button lowers the sound level of the game. Press and hold the button until
the
desired level is reached. See Adjustment
A.1 28
to shut sound Off completely.
The Begin Test Button starts the Menu System Operation and changes the Coin Door Buttons from
Normal Function to Test Function.
Test
Function
The Escape Button allows you to get out of a menu selection or return to the Attract Mode.
The Up Button allows you to cycle forward through the menu selections or adjustment choices.
The Down Button allows you to cycle backward through the menu selections or adjustment choices.
The Enter Button allows you to get into a menu selection or lock in an adjustment choice.
Holding the Enter button for five seconds, during the Attract Mode, resets the High Scores.
Coin Door Switches
I
ESCAPE
..&-
ENTER
I
I
TEST MODE FUNCTION
I
FISH TALES 1·5
