Maintenance Information

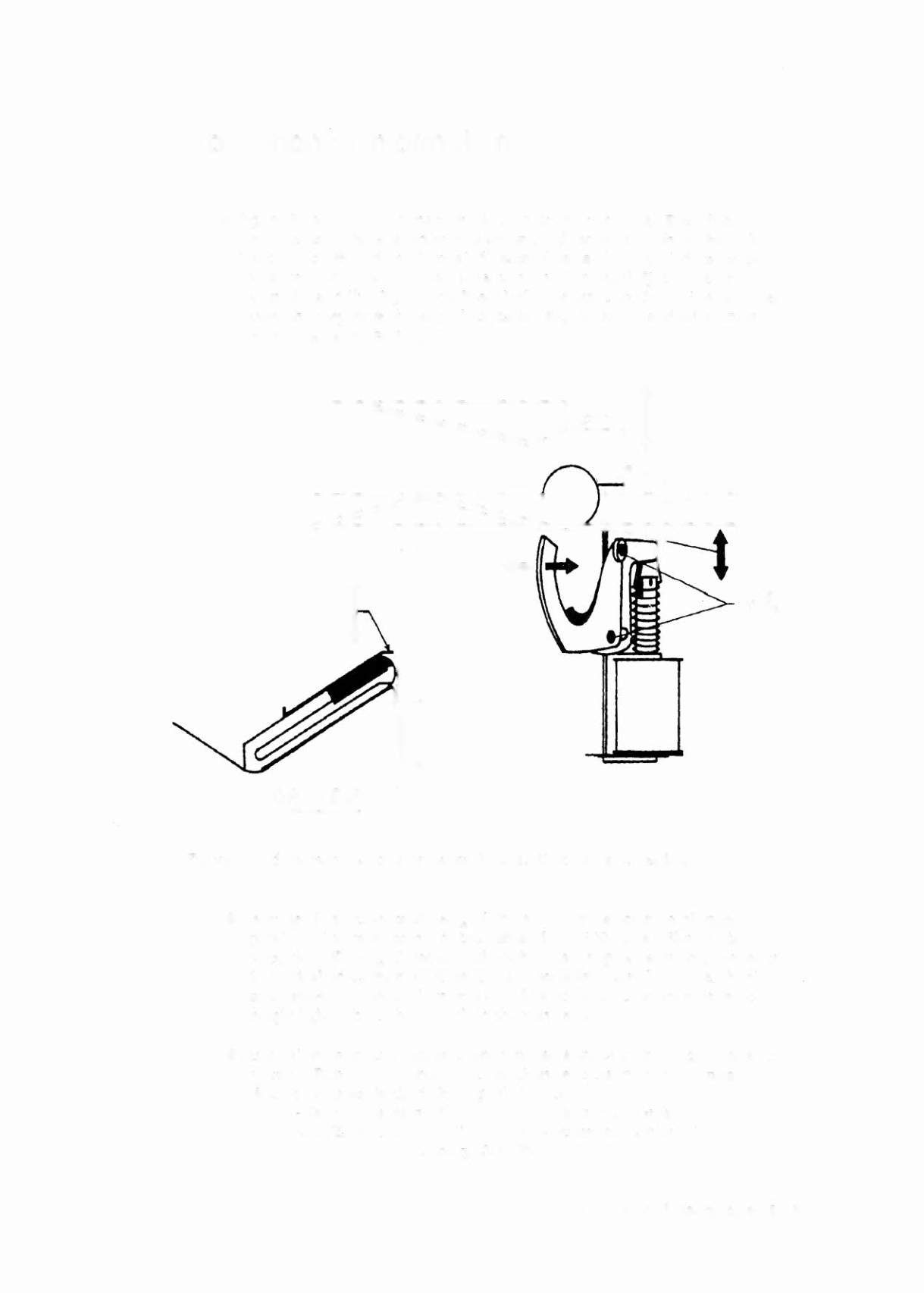

• Figure 3 shews the two main lubrication points of the Ball Eject (Shooter
Lane Feeder). The shaded arrows show the directions in which the Ball
Eject and other parts of its related assemblies can be adjusted for proper
operation. Note that the mechanisms of the Top Right Eject Hole Arm
Assembly and the Right Lock (Eject Hole) are quite similar to the Ball Eject
Assembly; they have the same lubrication requirements and adjustment
capabilities as the Ball Eject.
LUBE
PCINTS
TOP VIEW
Figure 3. Adjustments and Lubrication Points. Shooter Lane Feeder .
• Because of the functional design (arm-actuated via solenoid plunger
operation), the pivot points of the Left and Right Kickers ("Slingshots") and
the Spinout Kickblg all require lubrication as a regular servicing procedure.
Mechanical adjustments are simple and somewhat similar to the Shooter
Lane Feeder. These mechanisms should also be checked for proper fit
(snugly tight) where they attach to the playfleld .
• Lubrication to ensure proper operation also applies to the target blades of
the two 3-Bank Drop Targets. Lubrication reduces friction and wear.
BALLYrecommends the following lubricants ...
-Medtum
viscosity oil
-MBI Instrument Grease
-SUNEX
#257,
WAYOIL -Non-Gummmg Lubricant
-Viscostty: 300-350
Maintenance Information 1-45
