DISCO FEVER PARTS ,
PART NUMBER
I. IC-2852-483
2. A-4817-R
3. A-4741
4. A-8054
5. IA-6643
6. B-7894
7. B-8089
8. B-8055
9. B-7060
10. 23B-6537
11. 0-7473
12. IB-3573
13. 23A-6302
14. 23A-6303
IS. 23A-6304
16. 23A-6306
17. 23A-6307
18. 23A-6308
19. A-5844-8
20. A-5844-9
21. 30C-483
22. D-7931-2S
23. D-7931-3S
24. B-7537-L
25. B-7537-R
DESCRIPTION
TOP ARCH
RIGHT BALL GATE
REBOUND RUBBER
STATIONARY TARGET ASSY.
CHROME BALL GUIDE
JET BUMPER ASSY.
BALL GATE ASSY.
BALL KICKER ASSY.
FLIPPER ASSY.
FLIPPER RUBBER
BOTTOM ARCH ASSY.
SHOTTER GAUGE
RUBBER RING 1" I.D.
RUBBER RING 1-1/4" I. D.
RUBBER RING 1-1/2" I. D.
RUBBER RING 2-3/8" I. D.
RUBBER RING 2-7/8" I. D.
RUBBER RING 3-3/8" I. D.
ROLLOVER WIRE ASSY.
ROLLOVER WIRE ASSY.
PLA YFIELD PLASTICS
DROP TARGET ASSY.
DROP TARGET ASSY.
BALL GUIDE - LEFT
BALL GUIDE - RIGHT
POST ADJUSTMENTS
.•
To make game more "conservative" or "liberal," mov.
post 3/16" as shown in sketch. Spotting holes are pro-
vided and can be seen on removal of posts.
SUGGESTED SCORE CARDS
CREDIT GAMES
3 Ball 16C-483-14-SS
or 16C-483-29-SS
5 Ball 16C-483-52-SS
EXTRA BALLS
3 Ball 16C-483-74-'sS
5 Ball 16C-483-76-SS

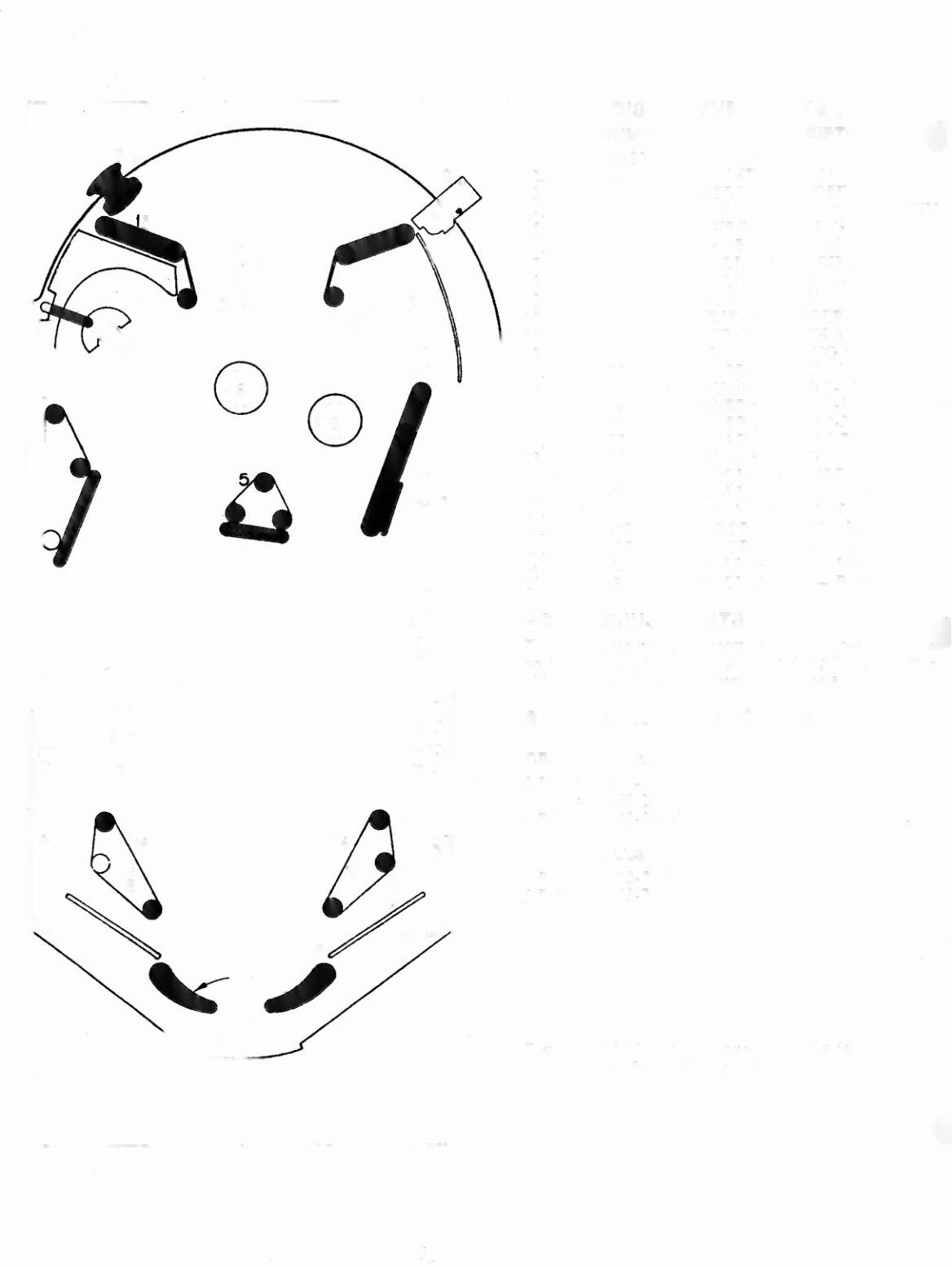

Figure 12. DISCO FEVER Spare Parts Identification
and Post Adjustment Details
