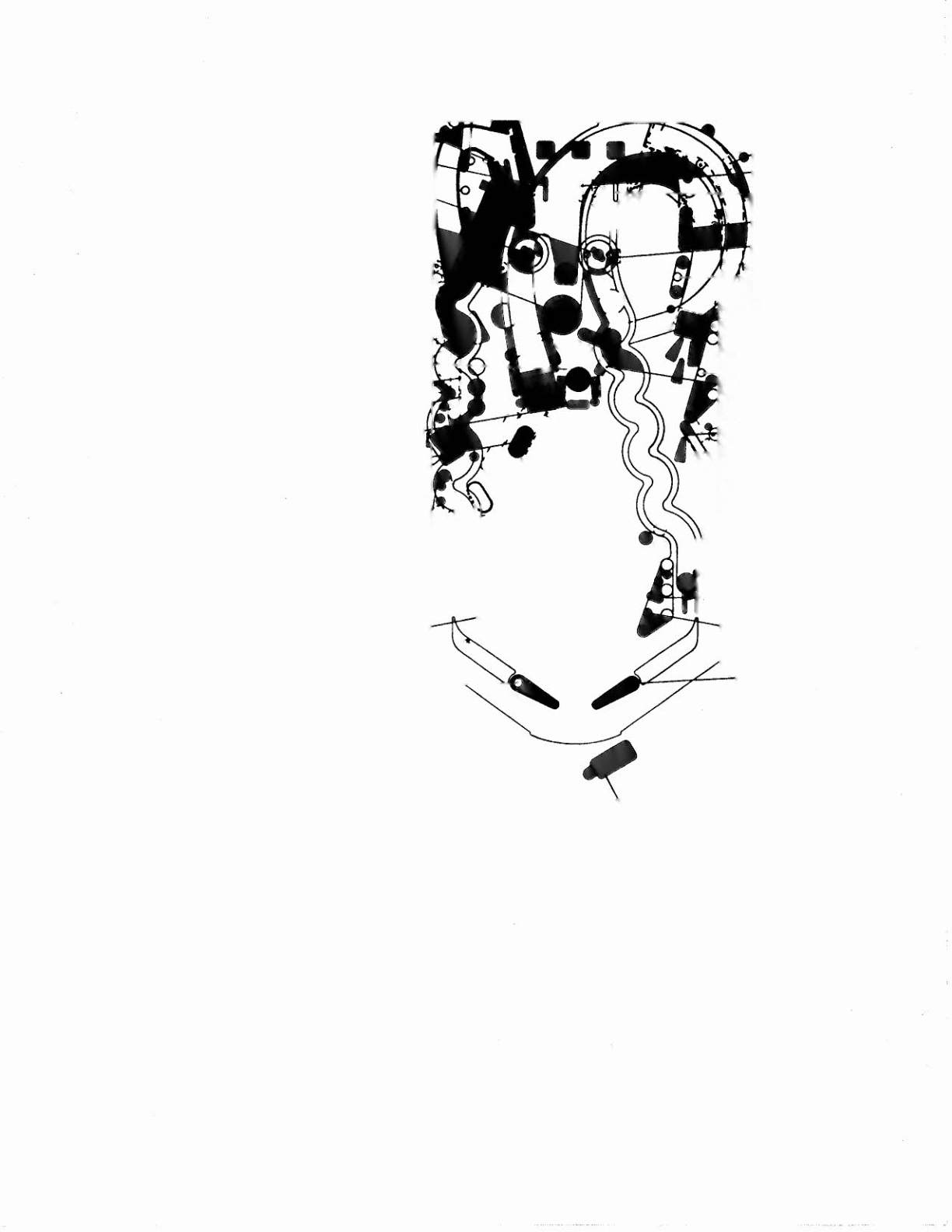

Item Part No.
1 A-8476
2 Not Used
3 SW-1A-126
4 27-1092
5 Not Used (USA)
6 27-1092
7 27-1066
8 27-1008
9 B-8306-1
10 17-1067
11 5647-12073-01
12 Not Used
13 5647-12073-09
14 5647-12073-10
15 5647-12073-10
16 5647-12073-10
17 5647-12073-10
18 C-11903-R
19 B-12039-5
20 B-12039-5
21 B-12039-5
22 B-11696-5
23 B-11696-5
24 B-11696-5
25 5647-12073-04
26 5647-12133-01
27 5647-12073-10
28 5647-12073-10
29 5647-12073-10
30 5647-12073-10
31 SW-1A-171
32 5647-12133-04
33 Not Used
34 5647-12133-07
35 B-4834-K
36 B-4834-K
37 B-4834-K
38 Not Used
39 Not Used
40 Not Used
41 5490-10159-00
42 Not Used
43 Not Used
44 Not Used
45 Not Used
46 Not Used
47 Not Used
48 Not Used
49 Not Used
50 Not Used
51 Not Used
52 Not Used
53 5647-12073-10
Switches
Description
Plumb Bob Tilt
Credit Button
R Coin Chute (USA)
Center Coin Chute
L Coin Chute (USA)
Slam Tilt
High Score Reset*
Playfield Tilt
Outhole
Score Spook House
Boomerang Kickbig
1 Gate/Lane
2 Gate/Lane
3 Gate/Lane
Ferris Wheel Entrance
t-bank Dr Tgt Opto
Duck target (top)
Duck target (mid)
Duck target (bottom)
Ball Toss target (top)
Ball Toss target (mid)
13,~~d-lo'--ti
Ball Toss target (bottom)
Ball Shooter Lane
Shuttle 1OK (kickbig)
Shuttle 25K (lower)
Shuttle 100K
Shuttle 25K (upper)
Shuttle 5K (topmost)
Enter Comet Ramp
Score Comet Ramp
Score Cyclone (ramp)
10 pt (bottom right)
10 pt (mid right)
10 pt (top right)
o
o
0
0
Mystery Wheel Opto** Item Part No.
Description
Left Outlane (drain)
54
55
56
57
58
59
60
61
62
63
64
5647-12073-10
5647-12073-10
5647-12073-10
B-9951-1
B-9951
B-12001-4
SW-11A-37
SW-11A-37
SW-11A-37
Right Outlane (drain)
Left Return Lane
Right Return Lane
L Flipper Lane Change
R Flipper Lane Change
Score Ball Toss Tgt
Jet Bumper (left)
Jet Bumper (right)
Jet Bumper (bottom)
Left Kicker***
Right Kicker***
SW-10A-48
Flipper Button (Cabinet sides)
Notes:
• Part Number is for entire Diagnostic Switch Assembly, including H S Reset Switch;
•• Part of Motor Control Assy, 0-12046;
••• [Paired Kicker Actuating Sw: A-4834-H; 8-8734-1]
CYCLONE 36
