PINBALL GAME ASSEMBLY INSTRUCTIONS
CORVETTE IS A 4 BALL GAME.
Power:
Domestic 120V
@
60 Hz
Foreign 230V
@
50 Hz
Japan 100V
@
50 Hz
Temp:
32
0
F to 100
0
F
(0
0
C to 38
0
C)
Humidity:
Not to exceed 95% relative.
Dimensions:
Width: 22" Approx.
Depth: 52" Approx.
Height: 75" Approx.
Weight:
Approx. 325 Lbs. (crated)
1. Remove all cartons, parts, and miscellaneous items from the shipping container and set them aside.
2. Leg levelers and leg bolts are provided among the parts in the cash box. Install leg levelers on front
and back legs (View 1). Place the cabinet on a support and attach rear legs using leg bolts (View 2).
3. Attach the front legs using leg bolts (View 2).

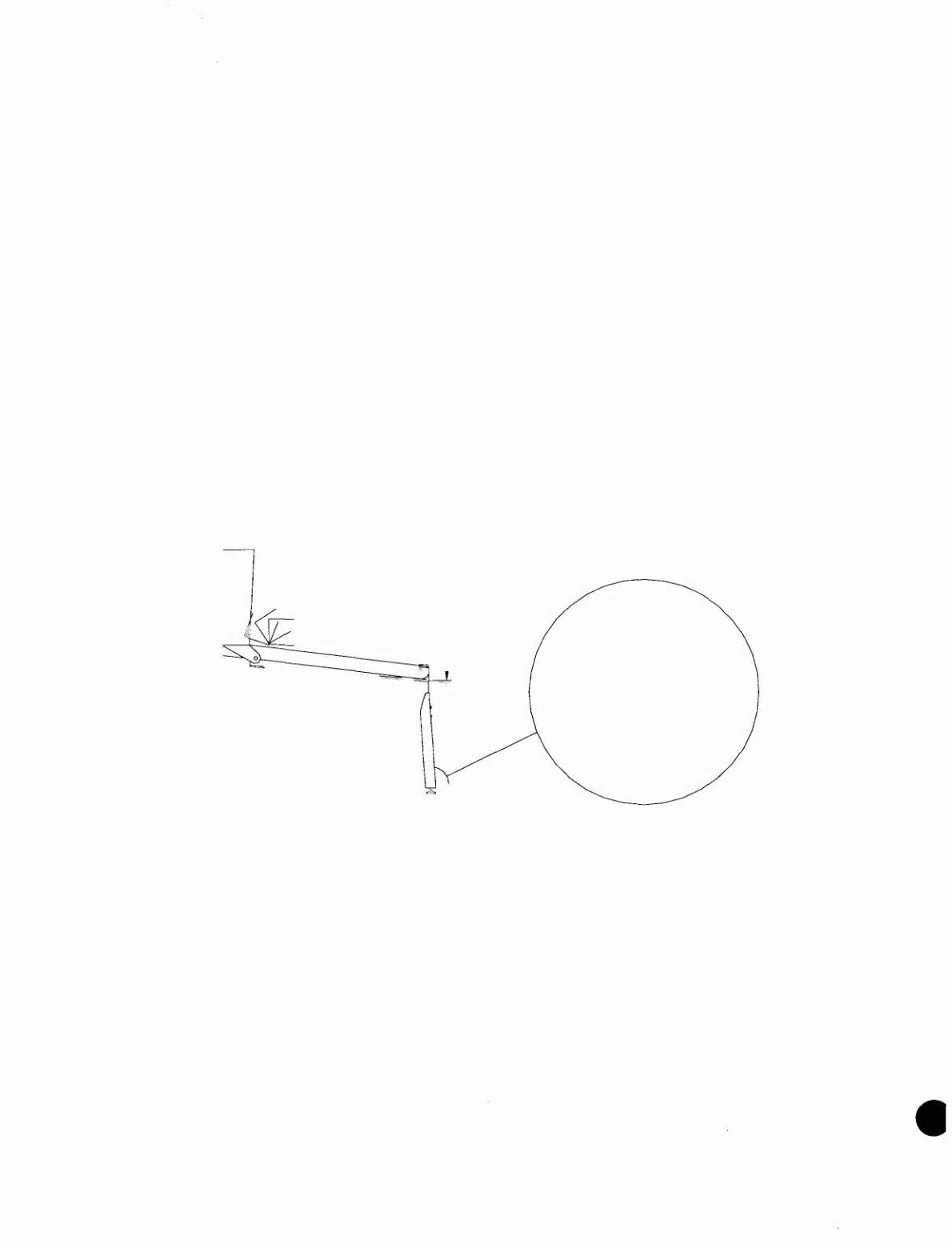

VIEW 1
Ii
@
B
0
,
r
~~;\:
i
:.:1!
i,
"{._
ifi
1\\
FRONT
VIEW 2
1-2
Detailed View-Leg Leveler
Leg Leveler
08-7377
o
i
~r,.
1
\
o
REAR
o
