A-20439

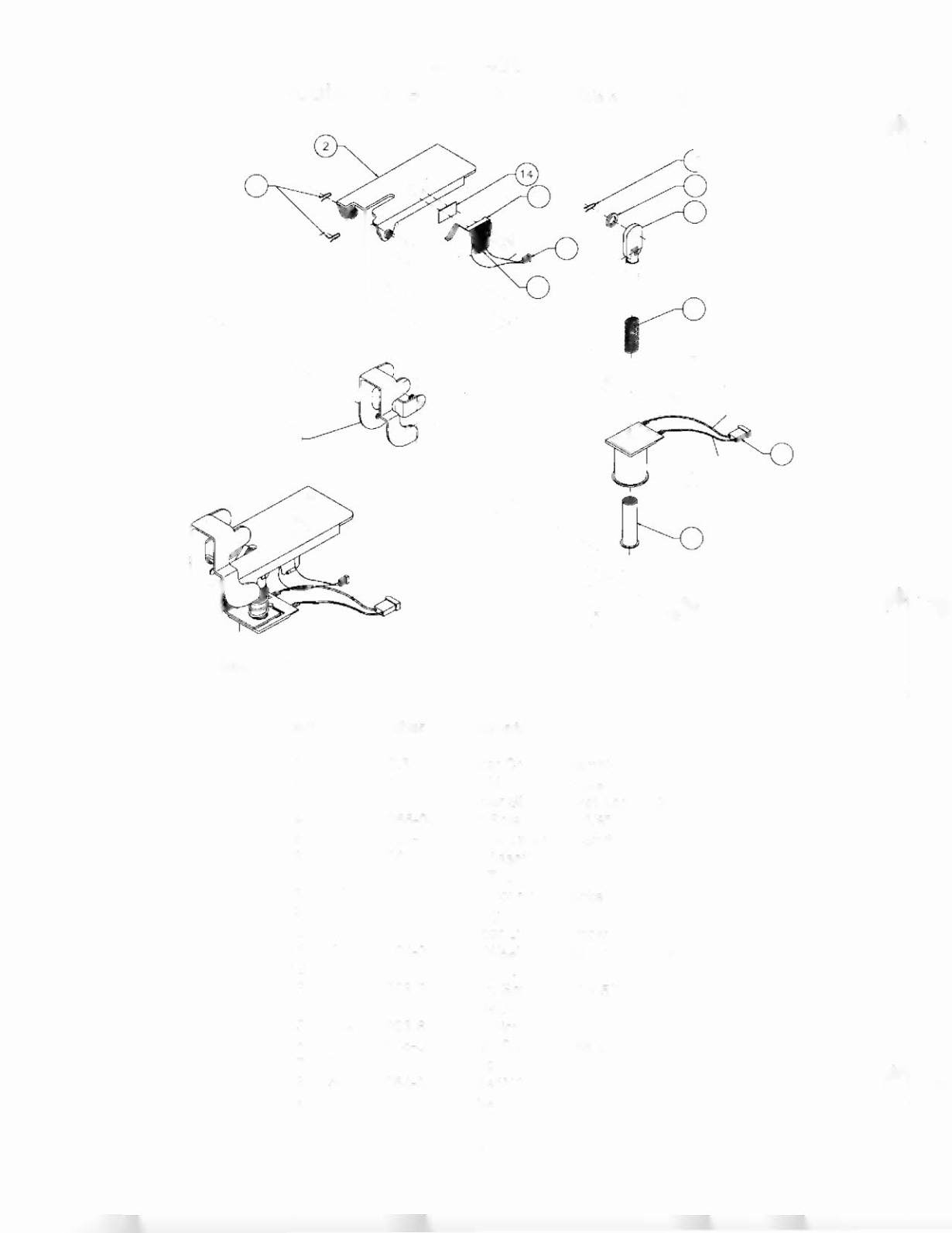

Shooter Lane Auto Kicker Assembly
19
Item Part Number
Description
1 04-10210.3
Kicker Crank Assembly
2 04-10211.3
Coil Mounting Bracket
3 A-12390
Flipper Stop Bracket Assembly
4 401 0-01 066-06 Cap Screw, #10 x 3/8"
5 4701 -00004-00 Lock Washer #10 Split
6 AE-23-800
Coil Assembly
7 03-7066
Coil Tubing
8 01-8413
Coil Mounting Bracket
9 10-128
Spring
10 A-15847
Flipper Link Assembly
11 4700-00104-00 Flat Washer, 23/64 x 1/2 x 16ga.
12 12-6227
Hairpin Clip
13 4006-01003-05 Mach. Screw, 6-32 x 5/16"
14 01-8600
Insulator
15 5647-12693-62 Mini-Micro Switch
16 4002-01105-08 Mach.
Screw,
#2-56 x 1/2"
17 H-16437
Cable
18 5070-09054-00 Dlode1 N4004
19 H-19523
Cable
