A-9415-2

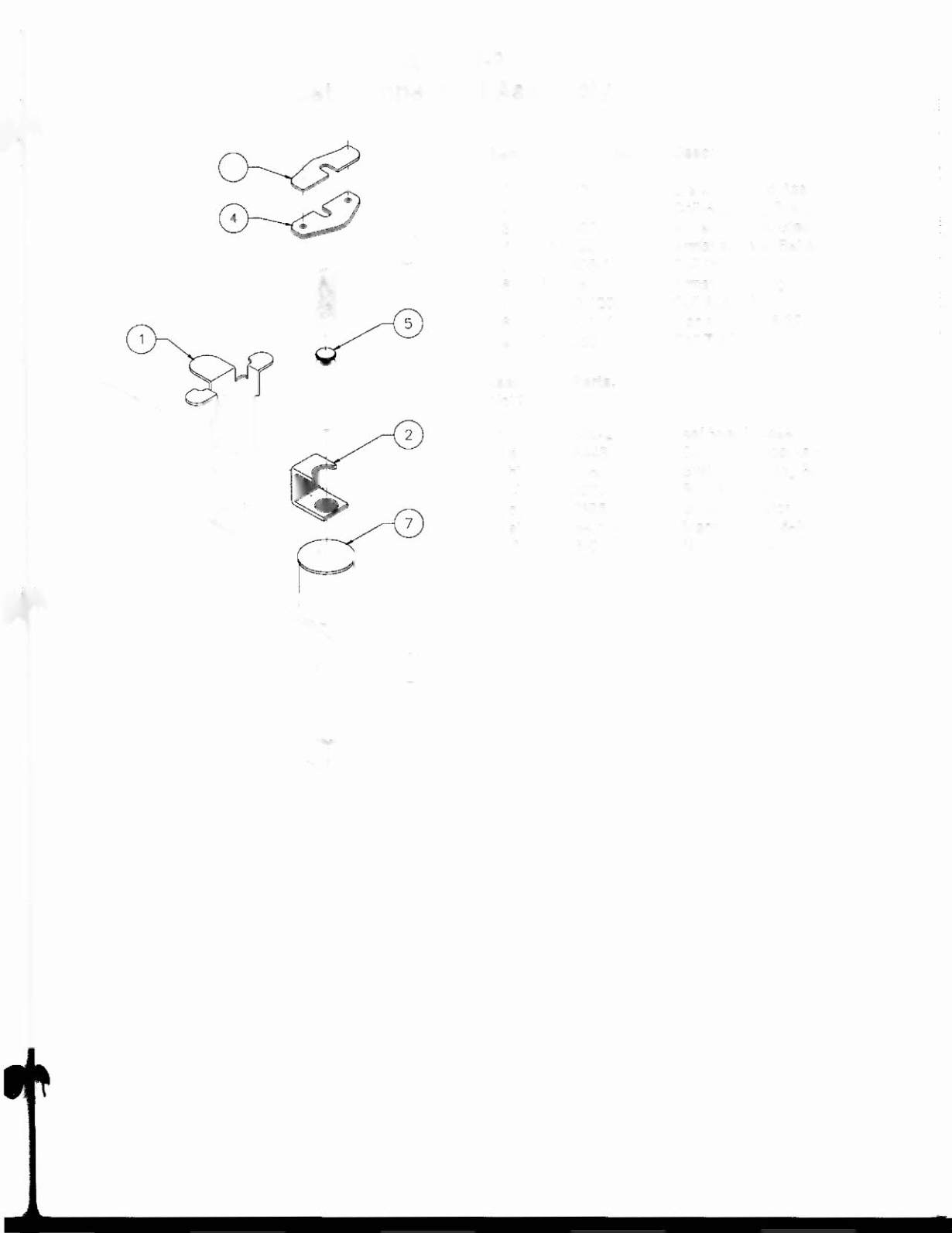

Jet Bumper Coil Assembly
0--~
Item Part Number
Description
I
I
0----J:£'
1 B-7417
Bracket & Stop Assembly
2 01-1747
Coil Retaining Bracket
<!>
3 01-5492
Armature Link, Steel
4 01-5493
Armature Link, 8akeline
5 02-3406-1
Coil Plunger
6 10-326
Armature Spring
7 AE-26-1200
Coil Assembly
8 4006-01 017-04 Mach. Screw, 6-32 x
1/4"
9 03-7066
Coit Tubing
Associated Parts:
(Not Shown)
10 8-12030-2
Leaf Switch Assembly
a)
A-16443
Switch & Diode Assembly
b)
01-1168
Switch Mounting Bracket
c)
01-3670
Switch Plate
d)
03-7395
Switch Actuator
e)
4005-01003-12
Mach. Screw, 5-40 x
3/4"
f)
4405-01117-00
Nut 5-40 Hex.
<,
:
-
,
-,
,
-,
2-19
