FAILURE
TO
INSTALL
the backbox mounting hardware properly can cause personal injury.
NEVER TRANSPORT
a pinball game with the hinged backbox erect. Always lower the backbox
forward onto the playfield cabinet on a layer of protective material to prevent marring or damage
and possible personal injury.
I
4.
Reach into the cabinet and backbox and ensure that the interconnecting cables are not kinked or
pinched. Be careful to avoid damaging wires at any stage of the assembly process.
5.
Raise the hinged backbox upright and latch it into position. Unlock the backbox, and remove the
backglass.
Remove the shipping screws holding the Insert Panel. Unlatch and open the Insert
Panel. Carefully lift up the Speaker Panel and lay it down on the playfield glass. (Be careful not to
damage the Dot Matrix Display/Driver.) This allows access to the bolt holes used for securing the
backbox upright.
To secure the backbox, install the washer-head mounting bolts through the
bottom holes of the backbox into the threaded fasteners in the cabinet. Close and latch the Insert
Panel. Replace the Speaker Panel. Reinstall the backglass, and lock the backbox.
&
CAUTION
6.
Extend each leg leveler
slightly
below the leg bottom, so that all four foot pads are extended about
the same distance. Remove the cabinet from its support and place it on the floor.
7.
Unlock and open the coin door. Move the molding latch lever toward the left side of the game. Lift
the front molding off the playfield cover glass return the latch lever toward the right, and close the
coin door. Carefully slide the glass downward, until it clears the grooves of the left and right side
moldings. Lift the glass up and away from the game, storing it carefully to avoid breakage.
8.
Place a level or an inclinometer on the playfield surface. Adjust the leg levelers for proper playfield
level (side-to-side).
NOTE:
This measurement must be made ON the playfield, not the cabinet nor
the playfield cover glass. Tighten the nut on each leg leveler shaft to maintain this setting.
9.

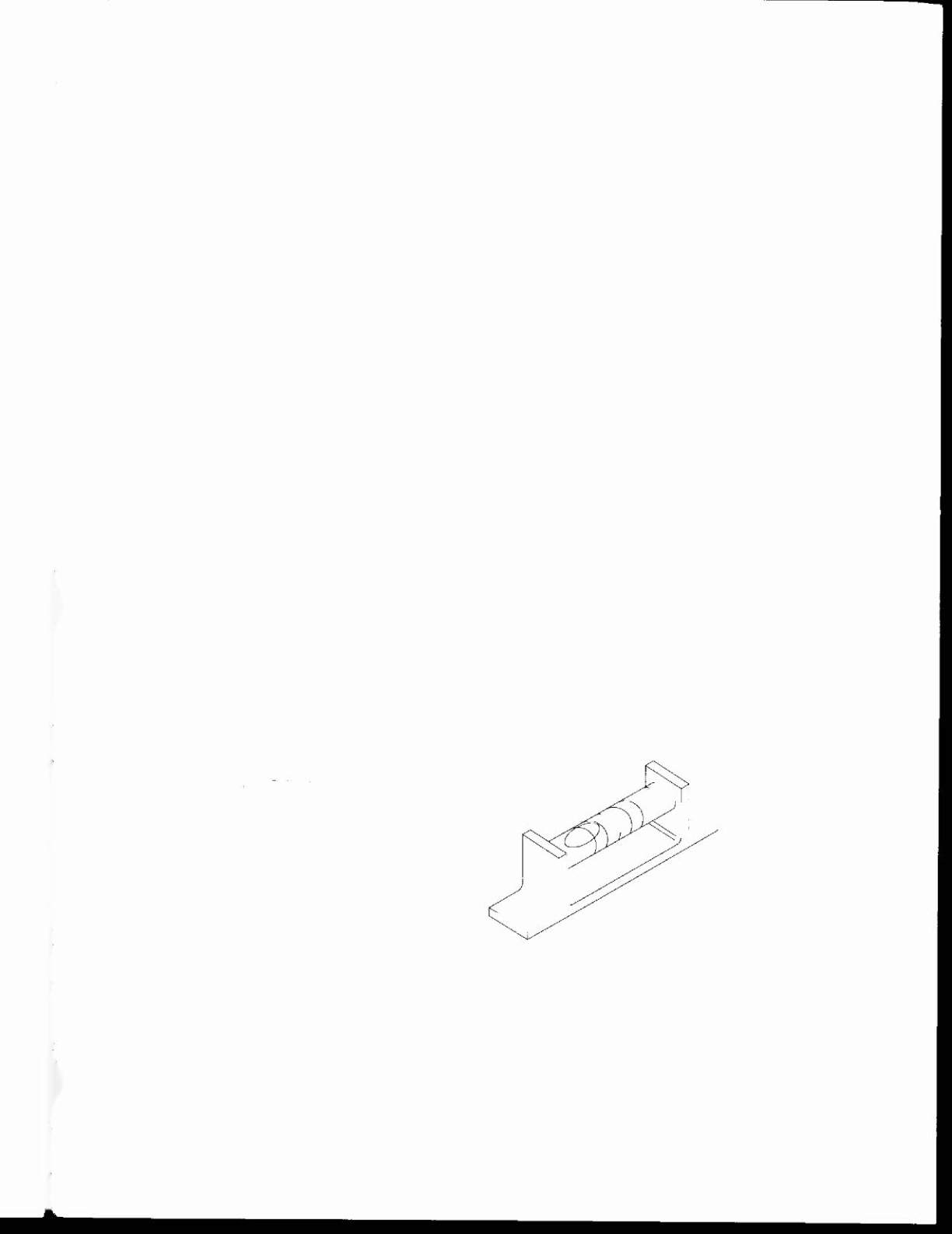

The TRU-PITCH™ level is located on the right shooter rail. This allows the playfield pitch angle to
be properly adjusted WITHOUT REMOVING THE GLASS. The first line (closest to the front of the
game) on the level is approximately 6 degrees. Every line thereafter is approximately another 1/2
degree of pitch. The recommended pitch is 6-1/2 degrees. The NOSE of the bubble should be
between the first and second line on the level (see diagram below).
TRLJ "'11
~;f-.TM
level
6 -
1
/2 dec;
'ees.
!
IMPORTANT!
Playfield pitch angle can affect the operation of the plumb bob tilt. The plumb bob weight is among
the parts in the cash box; the operator should install the weight and adjust this tilt mechanism for
proper operation, after completion of the desired playfield pitch angle setting. The unit is factory
installed for
a
6-112 degree angle. If an adjustment is necessary, loosen the screw at the bottom of
the unit. Move the pointer, one grove at
a
time to the left or the right, depending on the degree
desired. Hold the pointer in place and tighten screw
10. Move the game into the desired location; recheck the level and pitch angle of the playfield.
1-3
