IMPORTANT NOTICE
PLEASE READ
This pinball game is equipped with a SAFETY FEATURE to prevent shocks from
the solenoid circuit when the coin door is opened. An interlock switch assembly
(part no. A-18249-3), located at the left of the coin door opening, has been
added to the game. This assembly consists of a bracket containing the existing
memory protect switch on the bottom and a new interlock switch on the top.
When the coin door is opened, this new interlock switch opens, breaking the
connection to the +50V and +20V winding of the transformer secondary.
WHT-RED (928)
WHT-RED (92C)
8LK-YEL (04C)
BLK-YEL (048)
~

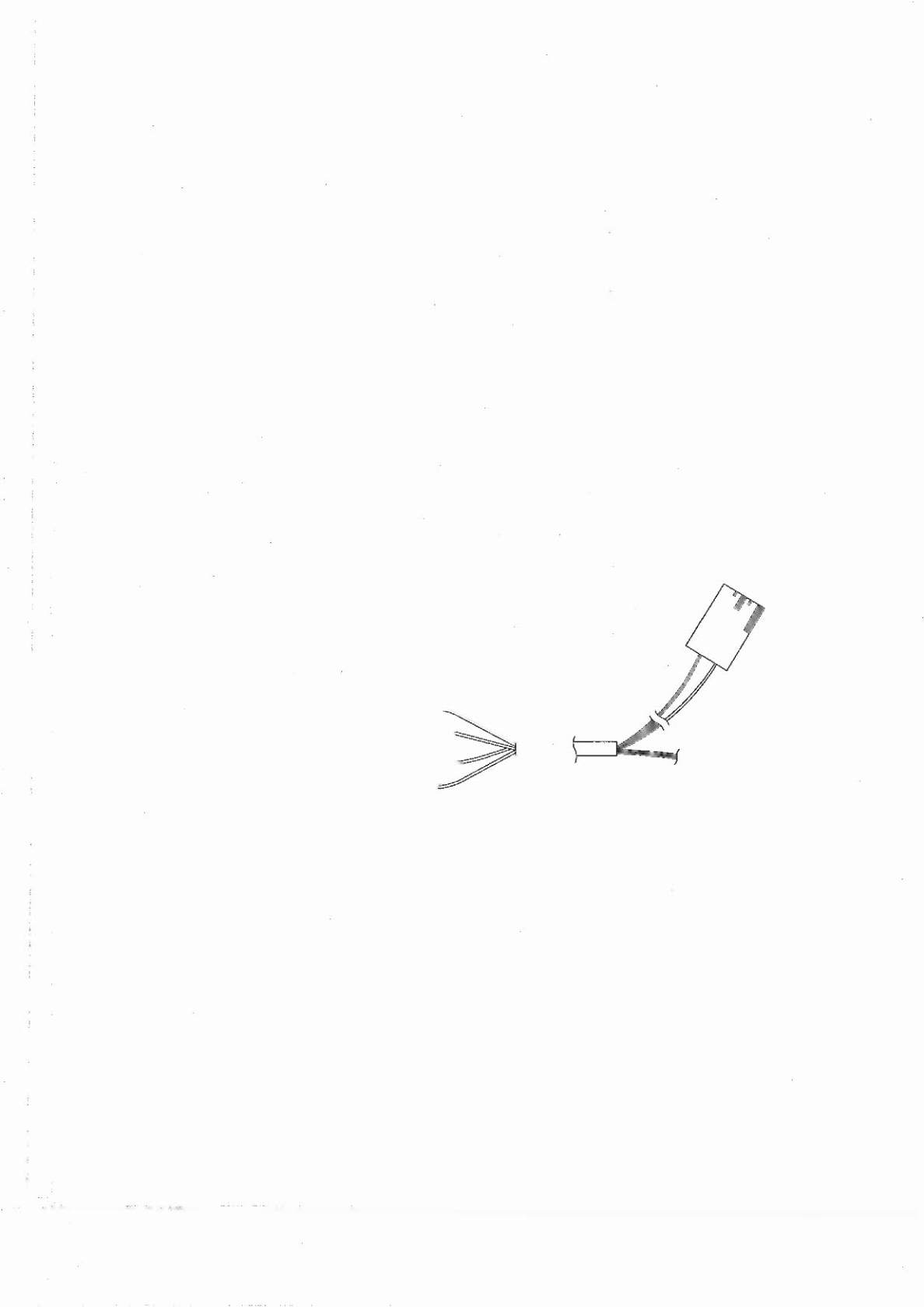

INTERLOCK SWITCH ASSEMBLY
(A~18249-3)
(A~18249-2,
JAPAN ONLY)
