A-15849-L

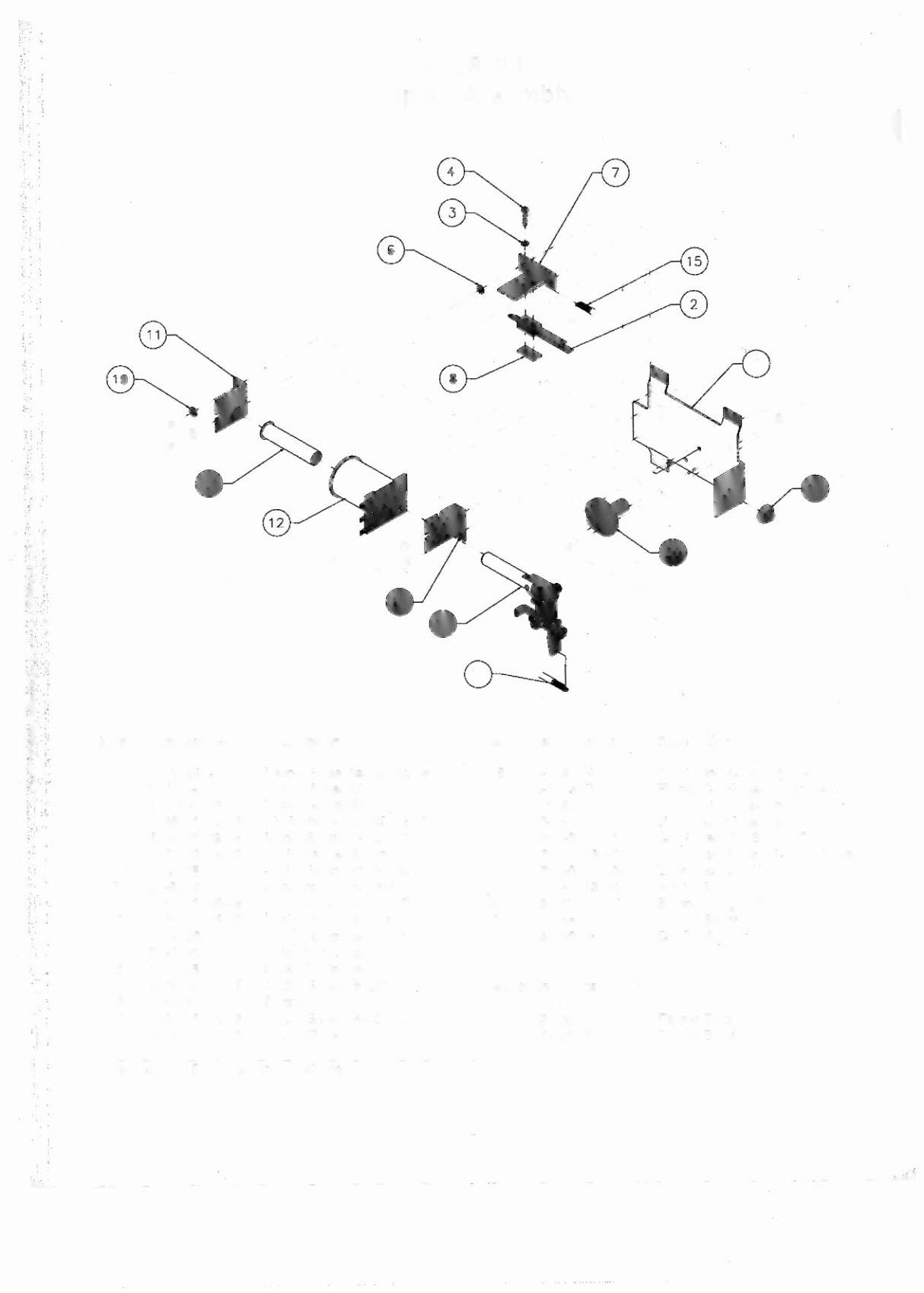

Flipper Assembly
REF.
Item Part Number
Description
Item Part Number
Description
1 8-13104-L
Flipper Base Assembly, Lett
*18 A-15848-L
Crank Link Assembly, Left
2 SW-1A-194
Switch Assembly
a) A-17050-L
Flipper Crank Assembly, Left
3 4701-00002-00 Lock Washer #6 Split
b) A-15847
flipper Link Assembly
4
4105-01019-10 Sh. Metal Screw, #5 x
5/a"
c) 02-4676
Link Spacer Bushing
5
4008-01079-05 Mach. Screw, 8-32 x
5/16"
d) 401 0-01 086-14
Cap Screw, 10-32 x
7/8"
6 4701-00003-00 Lock Washer #8 Split
e) 4700-00023-00
flat Washer,
5/8
x 13/64 x 16ga.
7 01-9375
Switch Mounting Bracket
f)
4701-00004-00
Lock Washer #10 Split
8
20-6516
Speednut, Tinnerman
g) 4410-01132-00
Nut 10-32 ESN
9
4010-01066-06
Cap Screw, 10-32 x 3/8"
19
23-6577
Bumper Plug, 5/8"
10 4701-00004-00
Lock Washer #10 Split
20
03-7568
flipper Bushing
11
A-12390
Flipper Stop Assembly
21
03-7066-5
Coil Tubing
12
FL-11630
Flipper Coil, Red
13
01-7695-1
Solenoid Bracket
14
4006-01 017-04 Mach. Screw, 6-32 x 1/4"
Associated Parts: (Not Shown)
15 10-364
Spring
16
4006-01 005-06 Mach. Screw, 6-32 x
3/8"
23-6695
Flipper Ring
17 4406-01117-00
Nut 6-32 Hex.
20-10110-5
Flipper Bat w/Shatt
• See page 2-15 for assembly detail drawing.
2-14
