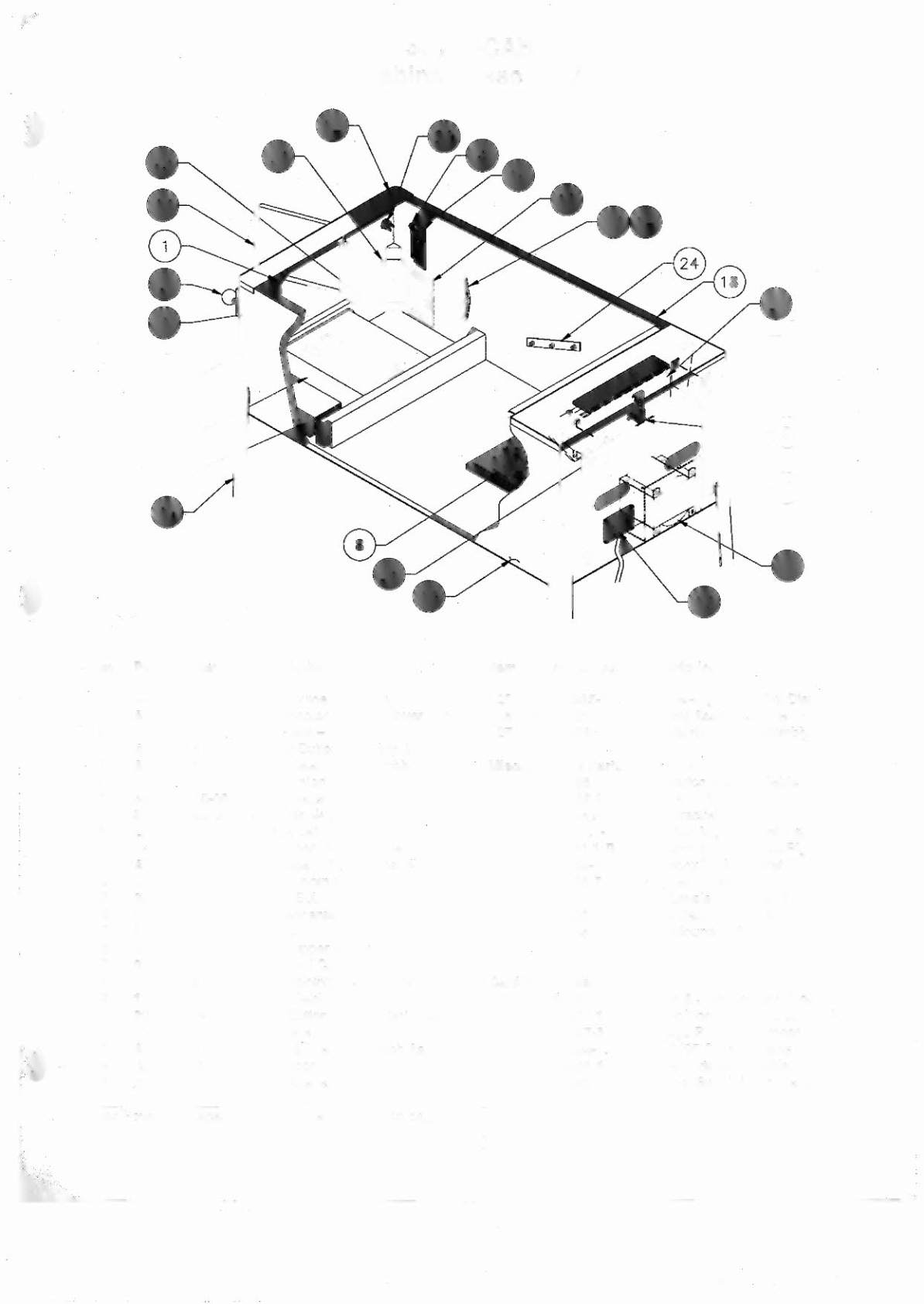

Item Part Number
Description
Item . Part Number
Description
1 A-16773-1
Lever Guide Assembly
25 04-10935-1
Bracket-Right Side Dot Display
2 A-17730-1
Ball Shooter Assy. W/Silver Knob
26 A-22021
Bracket Assy.-Left Side Dot Display
3 01-13936
Drip Plate - Narrow
27 A-21958
Dot Matrix Panel Assembly
4 A-16883-5
Flipper Button w/Spring (2)
5 A-20729-5
4-Ball Cashbox Assembly
Miscellaneous Parts: (Not Shown)
6
A-20871
Power Interface Assy.
A-17195
Tilt Switch Assy. w/Cable
7 5610-14515-00 WPC Transformer
. A-19562.1
Stay Arm Assembly
8
5555-12929-00 Speaker,4- ,6", 25w
01-12352
Clip Bracket
9 20-9347
Toggle Latch
01-9011.1-L
Backbox Mtg. Bracket, Left
10
A-20580
Coin Door Interface Board
01-9011.1-R Backbox Mtg. Bracket, Right
11
A-19514
Leg Assembly, Chrome {4}
01-6389-1
Cashbox Lock Bracket
12 0-12615
Front Molding Assembly
08-7028-T
Playfield Glass
13 20-6502-A
Plumb Bob
08-7377
Leg Leveler Adjuster, 3"
14 04-10346
Tilt Mechanism Assembly
20-6500
Steel Ball, 1-1/16" (4)
15
.,
Cordset
01-3535
Rod Mounting Plate
16 A-17316
Opto Flipper Assembly (2)
17 01-10714
Line Cord Cover
18 A-12359-3
Side Molding Assembly (2)
Cabinet Cables:
19 11-1345
Wood Cabinet
A-20201
Cable & Jumper Assy., Coin Door
20 20-9663-16
Push Button w/Sw.,
Start
(Yellow)
H-17217.1
Plumb/Bob Mech. Protect Cable
21 01-11400
Leg Plate (4)
H-17837-2
Voltage Program Jumper Cable
22 A-18249-3
Cable &·Interlock Switch Assy.
H-20599-1.1
WPC '95 Cabinet Cable
23 09-61000-1
Coin Door-U.S.A.
H-19601-1
Power Extension Cable
24 .01-11408
Plate Spacer (2)
H-20856
Cabinet Switch/Lamp Cable
.··t'····
.
:~ ~
'~
50062-CAB
Cabinet Assembly
* See Power Interface/Cordset Application Chart on page 2-33.
2-3
