PINBALL GAME ASSEMBLY INSTRUCTIONS
1. Open the shipping container; remove all cartons, parts, and other items, and set them aside.
2. Place cabinet on' a support and attach rear legs (after installing leg levellers). using leg bolts. leg
levellers and leg bolts are both provided among the parts in the cash box.
3. Attach the front legs (after installing leg levellers), using leg bolts. See Figure 3 for details .
_C-10843
Leg
08-7377
Leg Leveller
fi----I~
Shaft
I /
Fool
Pad
Nut~=:~F2!}1/
4422-01117-00
~~
Detail View~
Leg Leveller
.•...•.............
~
See
Detail View
--

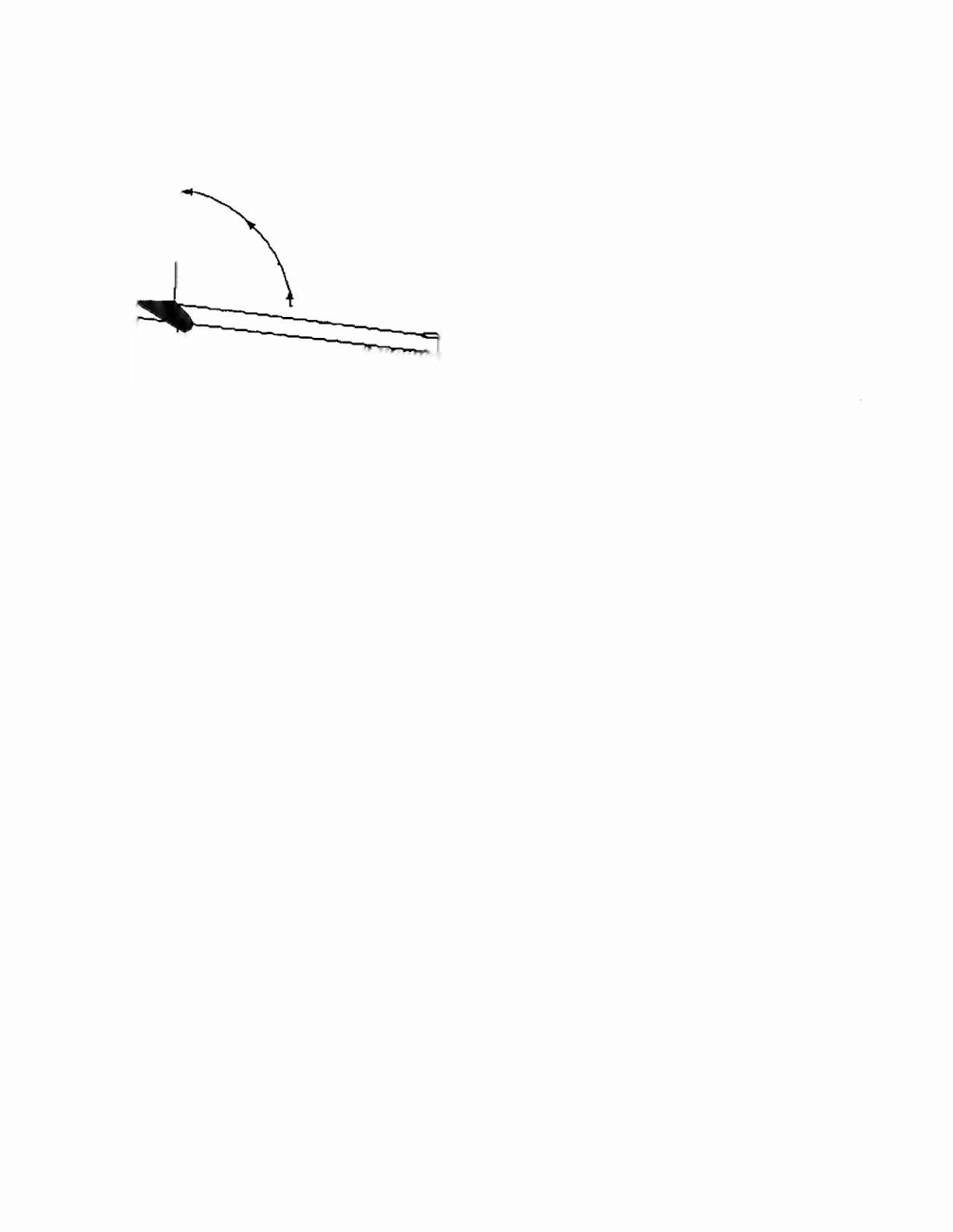

Figure 3. Pinball Assembly, Playfleld Pitch Angle, and Leg leveller Details.
4. Reach into the cabinet and backbox and ensure that the interconnecting cables are free to
move
(not kinked or pinched). Be careful to avoid damaging wires at any stage of the assembly process.
5. Raise the hinged backbox upright and stabilize it into position. Unlock the backbox, and
remove
the
backbox glass, storing it carefully to avoid scratches. Remove the shipping block holding the Insert
Board. Unlatch the Insert Board and open it; lift the Speaker/Display Panel and lay it on the playfield
glass. This allows access to the bolt holes used for securing the backbox upright. Instanthe washer-
head mounting bolts through the bottom holes of the backbox into the threaded fasteners in the
cabinet to secure the backbox. Remount the Speaker/Display Panel; close the Insert Board and
latch it in position. Reinstall the backbox glass. and lock the backbox.
( WARNING)
FAILURE
TO
INSTALL
the backbOx mounting hardware properly can cause
personal injury.
NEVER TRANSPORT
a pinball game with the hinged backbox
erect.
Always
lower the backbox forward onto the playfield cabinet on a layer of
protective material to prevent marring or damage and possible personal injury.
6.
Extend each leg leveller
slightly
below the leg bottom, so that all four foot pads are extended about
the same distance. Remove the cabinet from its support and place it on the floor.
7. Unlock and open the coin door. locate the Molding Latch Lever (shown in Figure 2), and move the
lever toward the left side of the game, to release the Front Molding. lift the Front Molding off the
playfield cover glass; return the latch lever toward the right, and close the coin door.
Carefully
slide
the glass downward, until it clears the grooves of the left and Right Side Moldings. lift the glass up
and away from the game. storing it carefully to avoid breakage.
