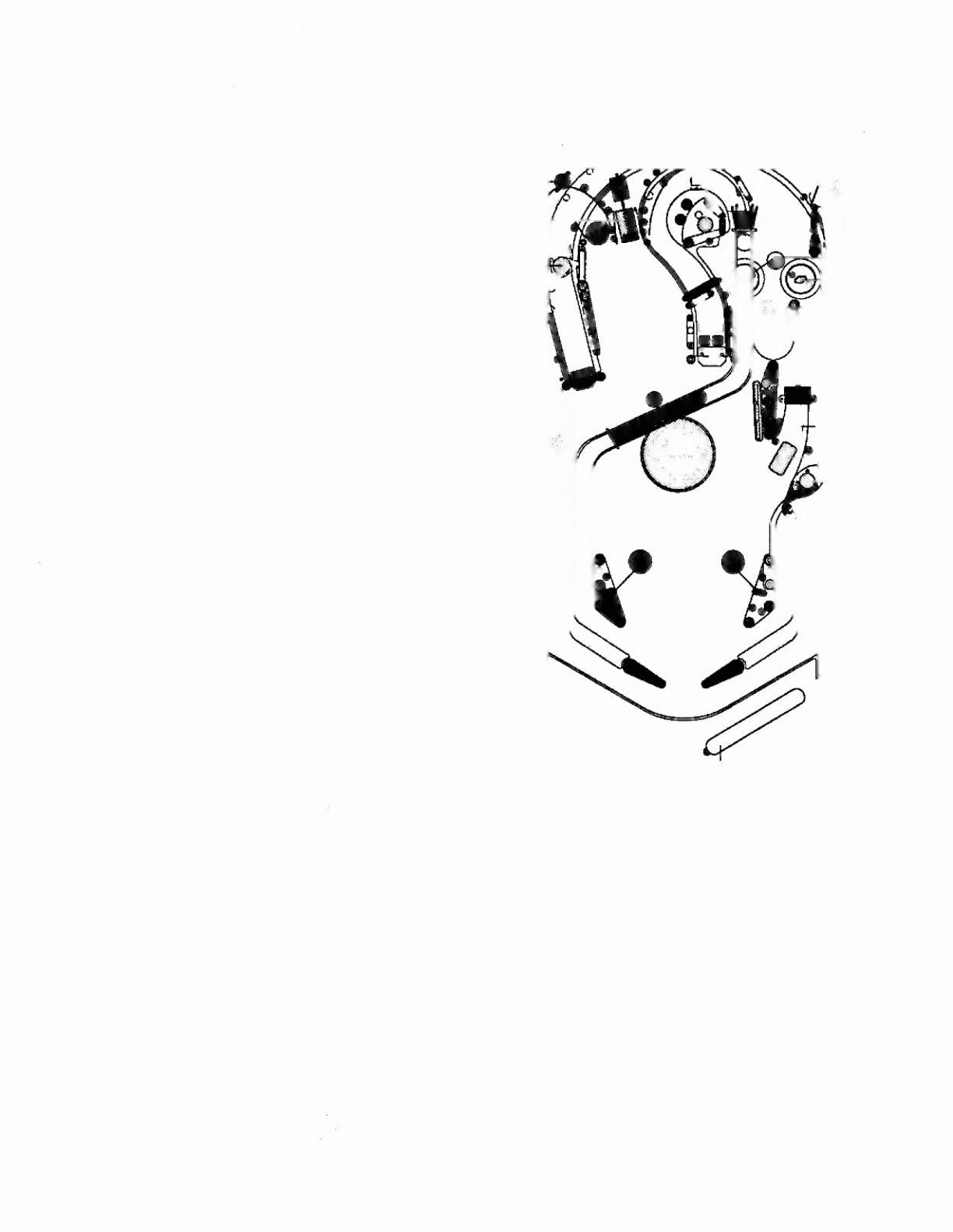

Solenoids/Flashers
Item Part No.
Description
1A AE-23-800
Outhole Kicker
1C #906/89 Flashlamps Fishrrrash Flashers
2A AE-23-800
Knocker
2C
#906/89
Flashlamps Tiger Flashers
3A AE-23-800
Doghouse Kickbig
3C
#906/29
Flashlamps Bird Bank Flashers
4A AE-26-1200
Milk Bottle 3-Bank Dr Tgt
4C
#906/89
Flashlamps Left Tiger Flashers
5A AE:23-800
Garbage Can Eject
5C
#906/89
Flashlamps Jackpot Flashers
6A AE-24-900
Bird Cage 5-Bank Dr Tgt
6C #906 Flashlamps Seafood Flasher
7A Not Used
7C. #906/89 Flashfamps Doghouse Flashers
8A Not Used
8C #906/89 Flashlamps Barbecue Flashers
9 14·7954
Cat (Backbox) Motor
10 5580-09555-01
PlayfieldGen IlluminRelay·
11 5580-09555-01
8ackbox Gen IHuminRelay·
12 5580-09555-01
Solenoid
AlC
Select Relay··
13 14-7954
Woman (Backbox) Motor
14 #906 Flashlamps BAD CATS Flashers
15 14-7948
Seafood Wheel )(CoiI2)
~6 14-7948
Seafood Wheel HCoi11)
17 AE-23-800
Left Jet Bumper
18 AE-26-1500
Left Kicker ("Sling")
19 AE-23-800
Right Jet Bumper
20 AE-26-1500
Right Kicker ("Sling")
21 AE-23-800
Lower Jet Bumper
22 Not Used
FL 11630/50VDC Lower Left and Right Flipper
• - On Relay Board, C-11998-1, on Playfield and Insert Board
U _
In backbox on Aux Power Driver Bd, D-,2247
'0
Rubber Parts
Part No. Description Oty
Part No. Description
Ofy
23-6300 5/16" Ring
7
23-6327 Ball Shooter Tip
1
23·6303 1-1/4" Ring
3
23-6519-4 Lg Red Flipper Ring 2
23-6304 1-1/2" Ring
1
23-6535 Bumper
2
23-6305 2" Ring
1
23-6552 Sleeving, Yellow
4
23-6306 2·1/2" Ring
2
23-6626 Grommet
6
23-6308 3-1/2" Ring
1
23-6629 Bumper Pad
1
23-6309 4" Ring
1
23-6638 Belt, Round
1
23-6313-1 Grommet
1
