MAINTENANCE INFORMATION
Figure 5 shows the
t\YO
main lubrication points of the Eject Hole Device. The shaded arrows show the
directions in which the Eject Hole Device and other parts of its related assemblies can be adjusted for
proper operation. Note that the mechanism of the Doghouse Kickbig Arm Assembly is quite similar to
the Eject Hole Device; it has the same lubrication requirements and adjustment capabilities as the Eject
Hole Device.
'
TOP VIEW
LUBE
POINTS

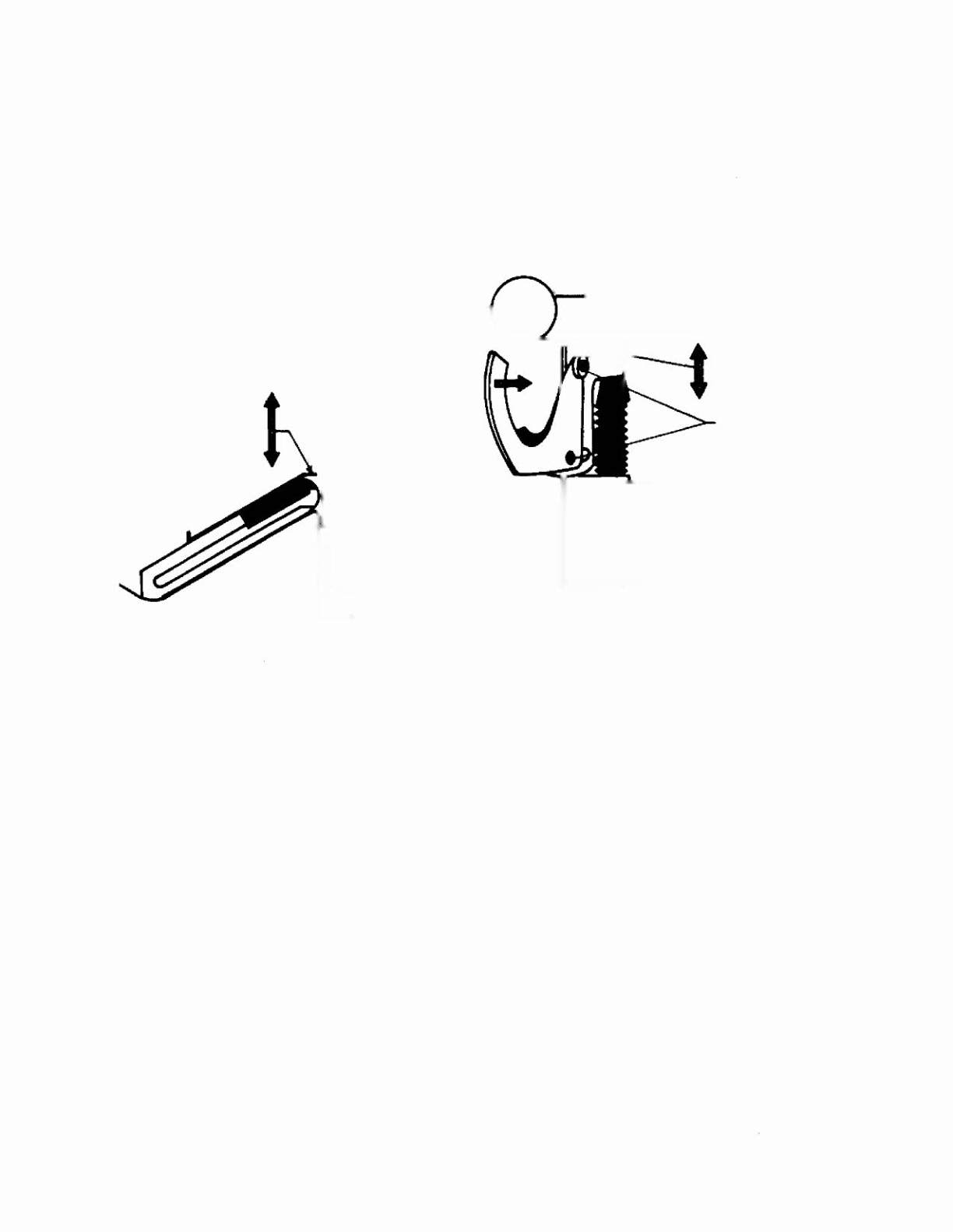

Figure 5. Adjustments and Lubrication Points. Eject Hole Device.
Because
01
the functional design (arm-actuated via solenoid plunger operation). the pivot points of the
Left and Right Kickers ("Slingshots")
all require lubrication as a regular servicing procedure.
Mechanical adjustments are simple and somewhat similar to the Eject Hole Device. These mechanisms
should also be checked for proper
fit
(snugly tight) where they attach to the playfield. Lubrication to
ensure proper operation also applies to the target blades of the 3·Bank and 5·Bank Drop Targets.
Regular maintenance is essential to a game's continuing contribution to the operator's earnings.
