BABY PAC-MAN *1299
RUBBER PARTS
A.
R-521
%"
DlA.
(2)
B,
R-521-2
1%" DlA.
(2)
C.
R-521-4
2%" DlA.
(4)
D.
R-533-3
FLIPPER (2)
E.
R-243
5116"
DIA.
(2)
F.
R-414
POST
(4)

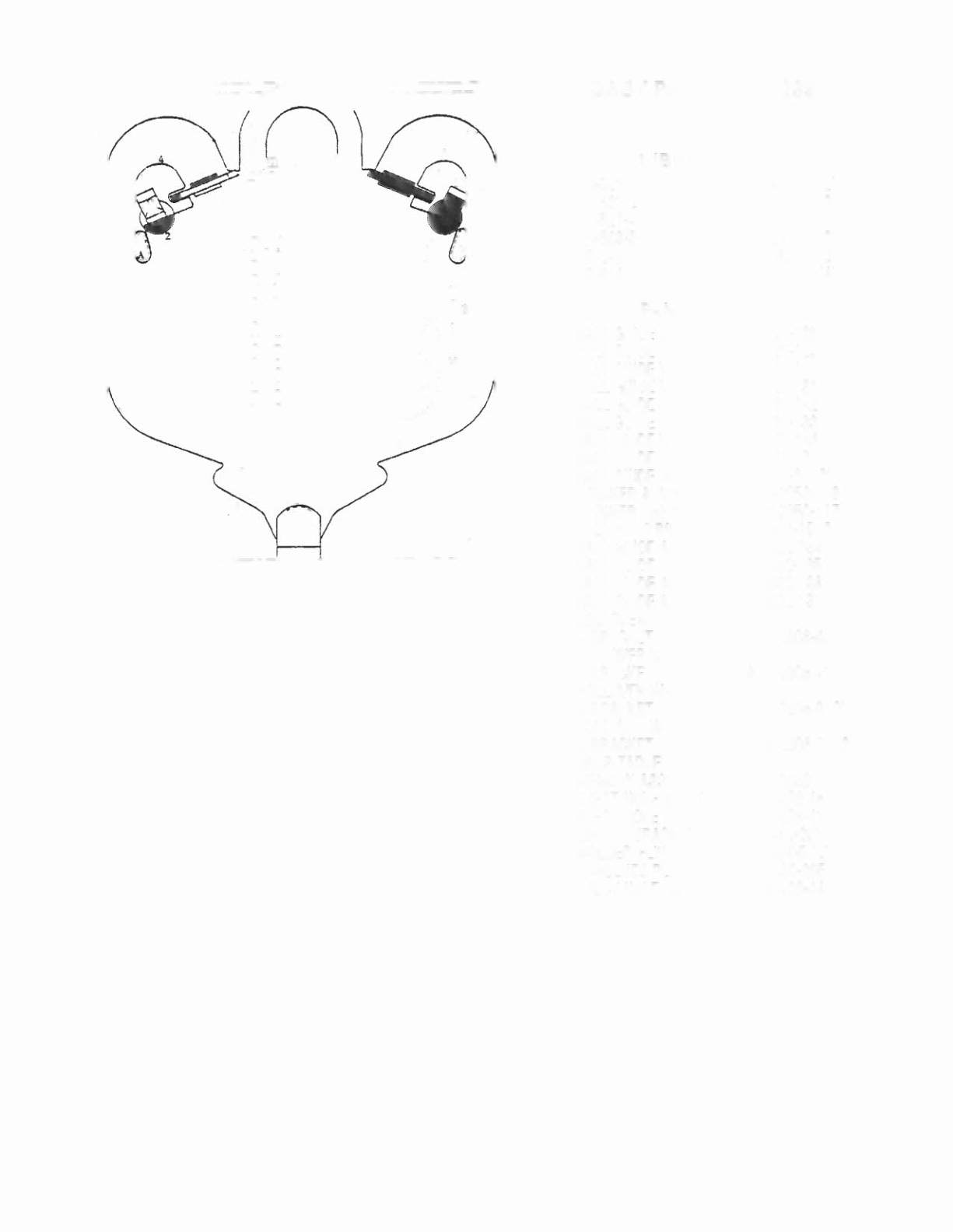

PANEL PARTS
1. BALL GUIDE WIRE
M-121-128
2. BALL GUIDE WIRE
M-121-129
3. BALL GUIDE WIRE
M-121-130
4. BALL GUIDE WIRE
M-121-131
5. BALL GUIDE WIRE
M-121-132
6. BALL GUIDE WIRE
M-121-133
7. BALL GUIDE WIRE
M-121-134
8. BALL GUIDE WIRE
M-121-127
9. BALL GUIDE WIRE
M-121-27 (2)
10. SPINNER ASS'Y (L)
ASE-2250-116
11. SPINNER ASS'Y (R)
ASE-2250-117
12. BALL STOP BRACKET P-6661-15 (2)
13. BALL GUIDE ASS'Y
A-3032-134
14. BALL GUIDE ASS'Y
A-3032-135
15. BALL GUIDE ASS'Y
A-3032-136
16. BALL GUIDE ASS'Y
A-3032-137
17. ROLLOVERWIRE
&
BRACKET
18. ROLLOVERWIRE
&
BRACKET
19. ROLLOVERWIRE
&
BRACKET
20. ROLLOVERWIRE
&
BRACKET
21. DROP TARGET
&
MEMORY ASS'Y
22. EJECT HOLE ASS'Y
23. EJECT HOLE ASS'Y
24. LIFT-UP BRACKET
25. MOLDED FLIPPER
26. SCREENED PLASTICS
27. EJECT HOLE ASS'Y
ASE-2806-40
ASE-2806-41
ASE-2806-9 (2)
ASE-2806-10 (2)
ASE-3038-10
ASE-428-46
ASE-428-41
P-6442-291
A-3994-5 (2)
M-1330-205
ASE-428-44
